Description

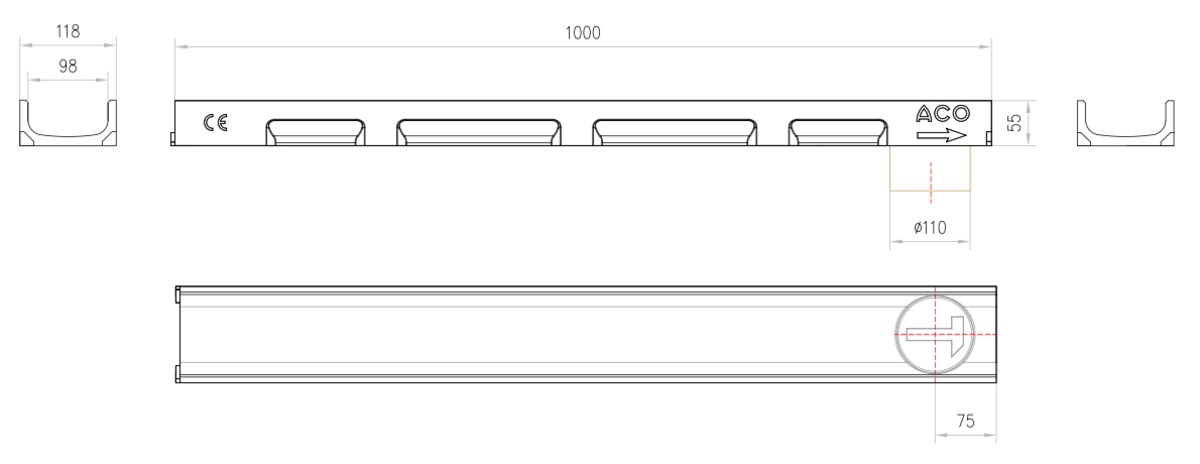

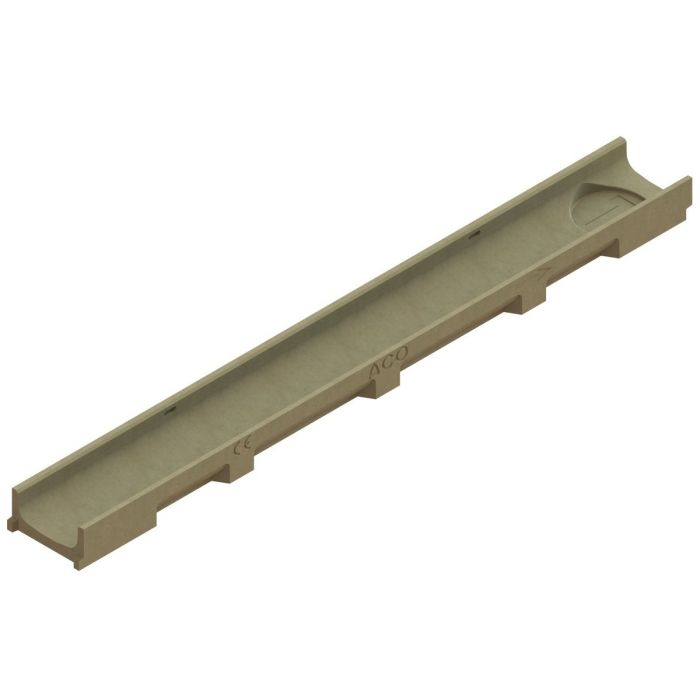

Drainage channel type ACO SELF 100 in Concrete Polymer without grating with load class B125 according to EN1433. Locking system by clip. Internal section 38 cm² with vetical knockout DN/OD 110. Total length 1000 mm, overall height 55 mm and overall width 118 mm. Nominal width 98. Weight: 4,9 kg.
Technical Specifications
Dimensions
- Height (mm):
- 55
- Weight (kg):
- 4,9
- Load class:
- B125
- Flow rate (l/s):
- 0,9
- Internal section (cm²):
- 38
- Model:
- SELF 100
- Length (mm):
- 1000
- Width (mm):
- 118
