Description

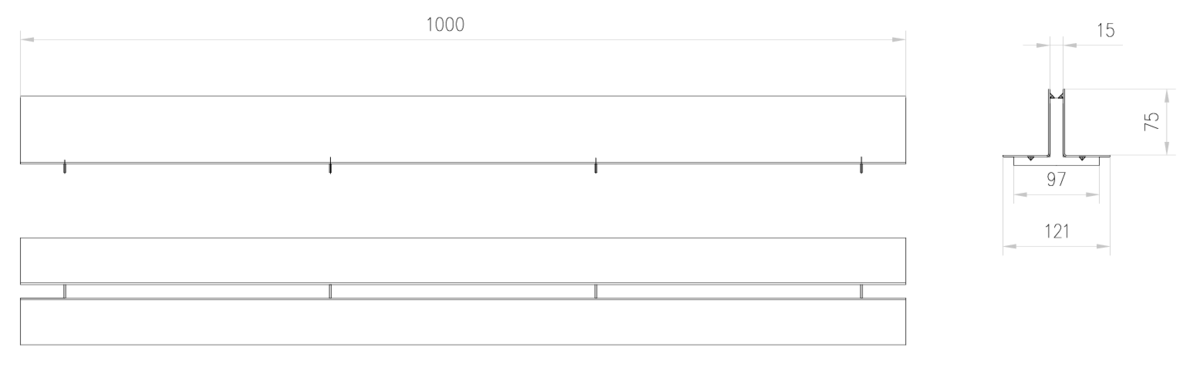

Grate type brickslot T in galvanised steel, with load class C250 in accordance with EN1433, for surface drainage channels type ACO SELF 100. Intake area of 150 cm²/m. Lenght overall 1000 mm, external height 87 mm and external width 121 mm. Unit weight: 4 kg.
Technical Specifications
Dimensions
- Model:
- SELF 100
- Length (mm):
- 1000
- Width overall (mm):
- 121
- Total height (mm):
- 87
- Weight (kg):
- 4
- Intake area (cm²/m):
- 150
- Load Class:
- C250
