Description

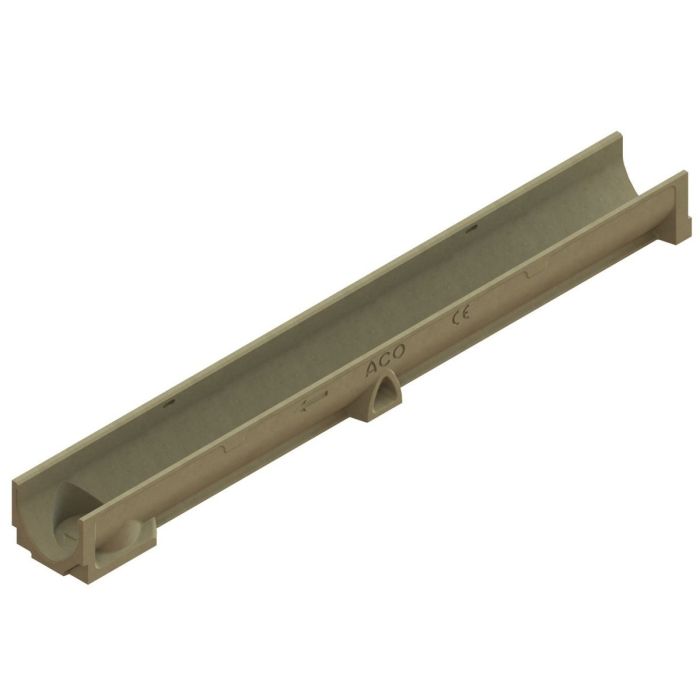

Drainage channel type ACO SELF 100 in Concrete Polymer without grating with load class B125 according to EN1433. Locking system by clip. Internal section 70 cm² with vetical knockout DN/OD 110. Total length 1000 mm, overall height 95 mm and overall width 118 mm. Nominal width 98. Weight: 6,6 kg.
Technical Specifications

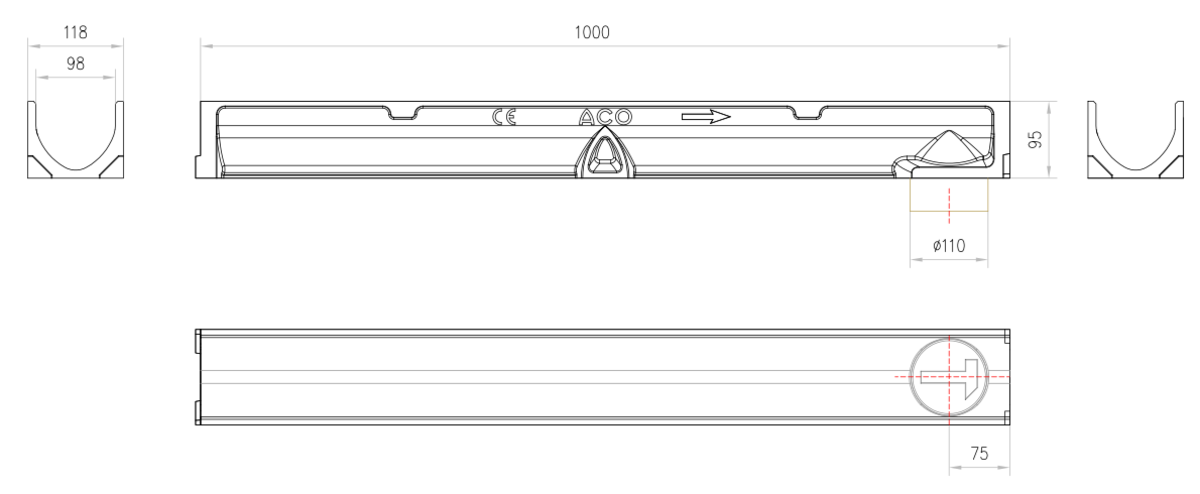

Dimensions
- Model:
- SELF 100
- Length (mm):
- 1000
- Width (mm):
- 118
- Height (mm):
- 95
- Weight (kg):
- 6,6
- Load class:
- B125
- Flow rate (l/s):
- 2,5
- Internal section (cm²):
- 70
