Description

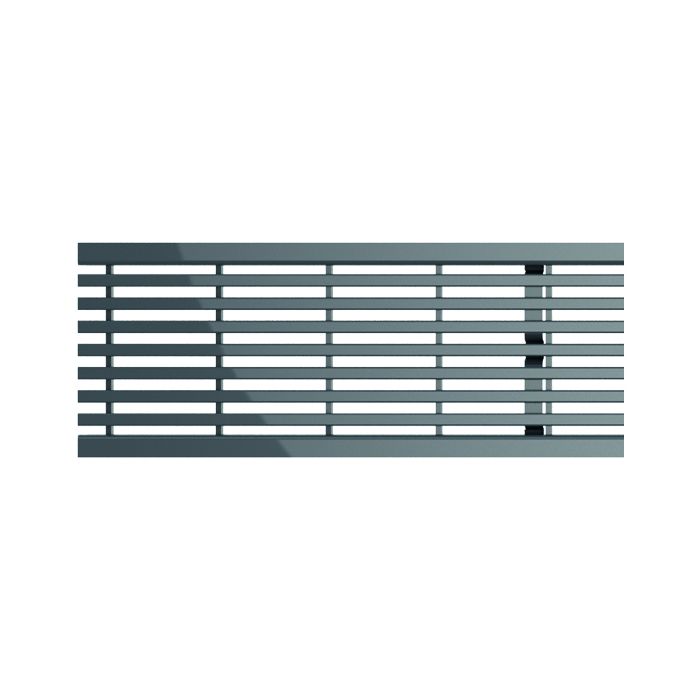

Grate type ladder in stainless steel AISI 304, with load class A15 in accordance with EN1433, for surface drainage channels type ACO SELF 100. Locking system by SPRINGLOCK. Intake area of 440 cm²/m. Lenght overall 1000 mm, external height 22 mm and external width 118 mm. Unit weight: 2,0 kg.
Technical Specifications

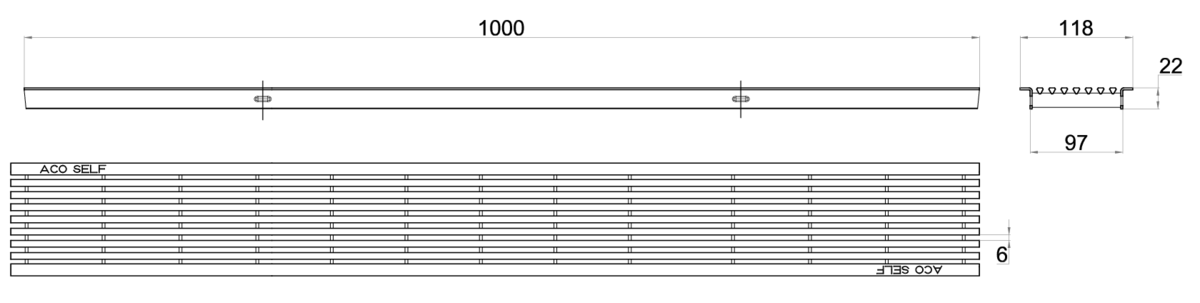

Dimensions
- :
- :
- :
- :
- :
- :
- :
Catalogs
Technical datasheets
Manuals and installation sections
