Description

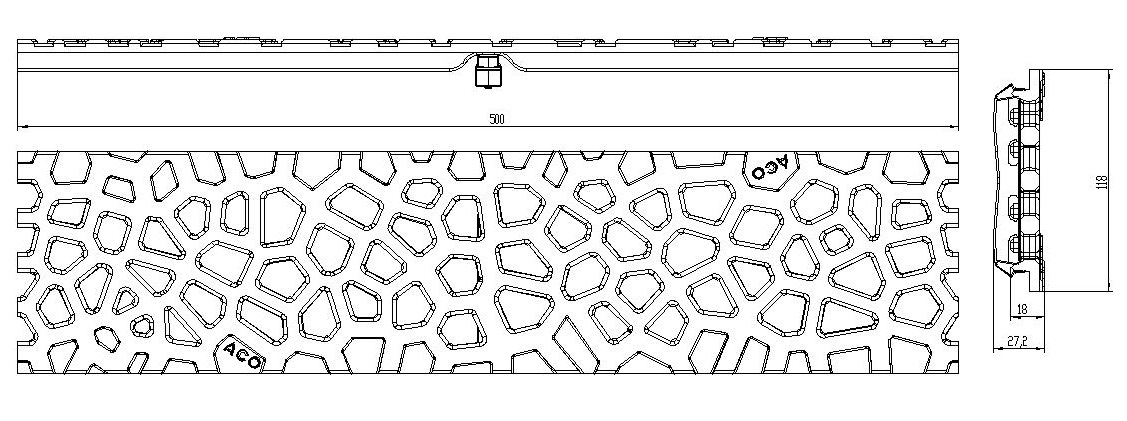

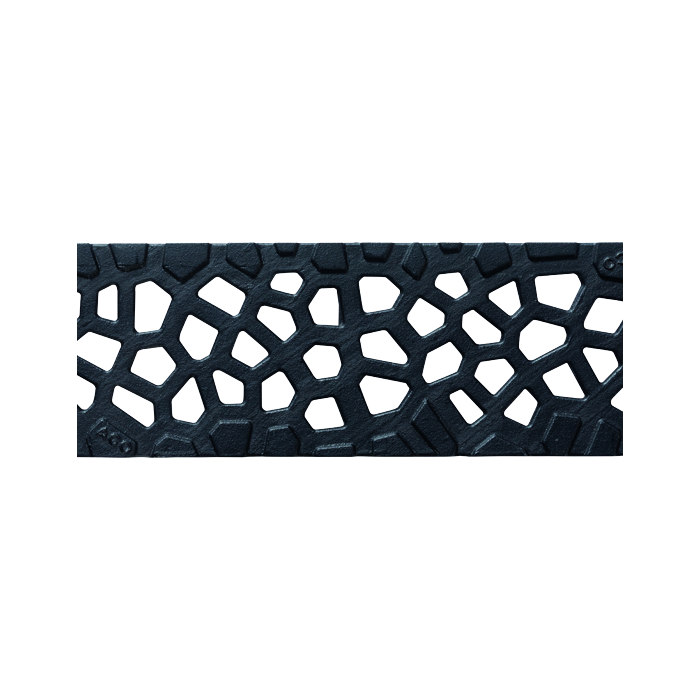

Grate type VORONOÏ in cast iron, with load class B125 in accordance with EN1433, for surface drainage channels type ACO SELF 100. Locking system by clip. Intake area of 447 cm²/m. Lenght overall 500 mm, external height 27,2 mm and external width 118 mm. Unit weight: 2,9 kg.
Technical Specifications
Dimensions
- :
- :
- :
- :
- :
- :
- :
Catalogs
Manuals and installation sections
