Description

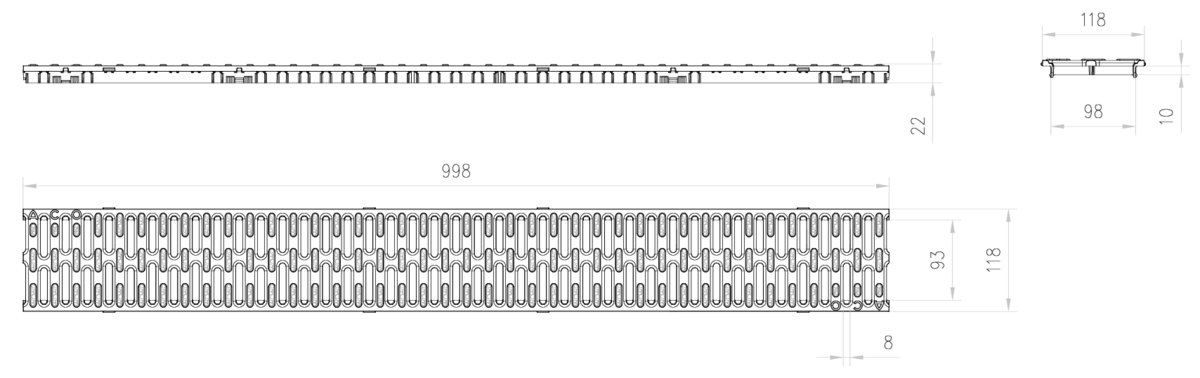

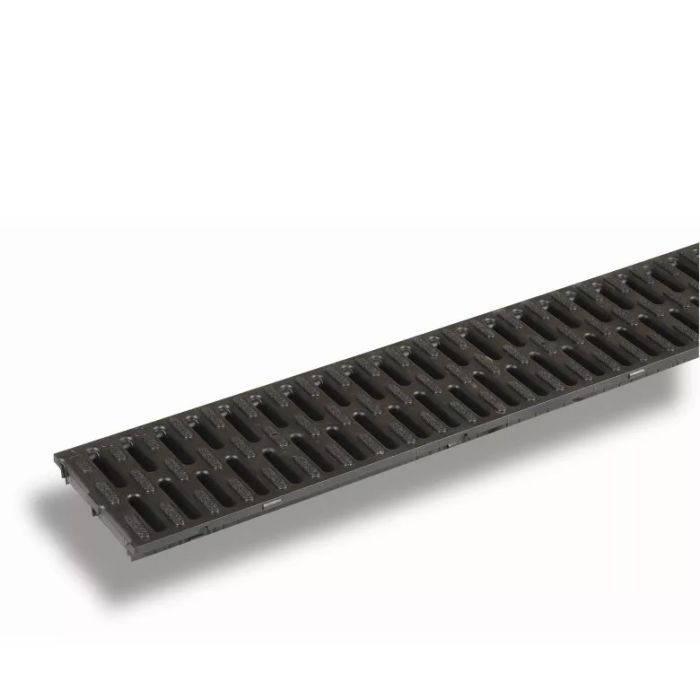

Grate type heelsafe slotted with microgrip in Polypropylene, with load class A15 in accordance with EN1433, for surface drainage channels type ACO HEXALINE 100. Locking system by clip. Intake area of 254 cm²/m. Lenght overall 1000 mm, external height 22 mm and external width 118 mm. Unit weight: 0,63 kg.
Technical Specifications
Dimensions
- Length (mm):
- 1000
- Width overall (mm):
- 118
- Total height (mm):
- 22
- Weight (kg):
- 0,63
- Intake area (cm²/m):
- 254
- Load Class:
- A15
- Model:
- HEXALINE 100
