Description

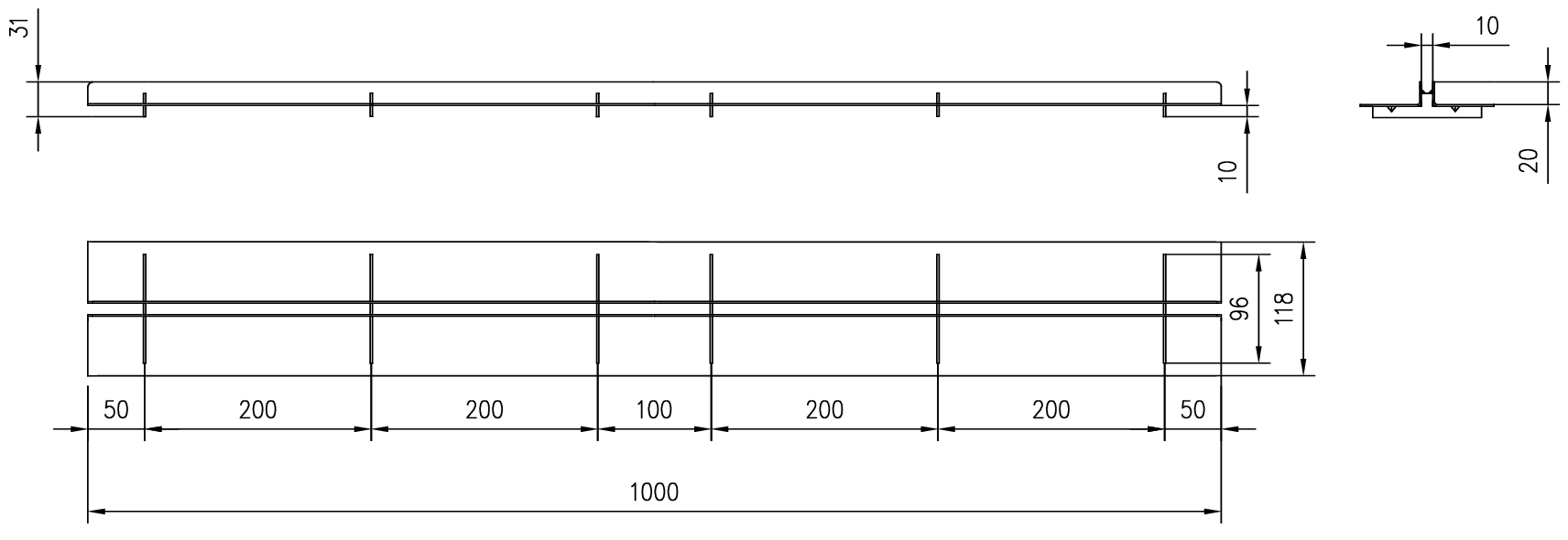

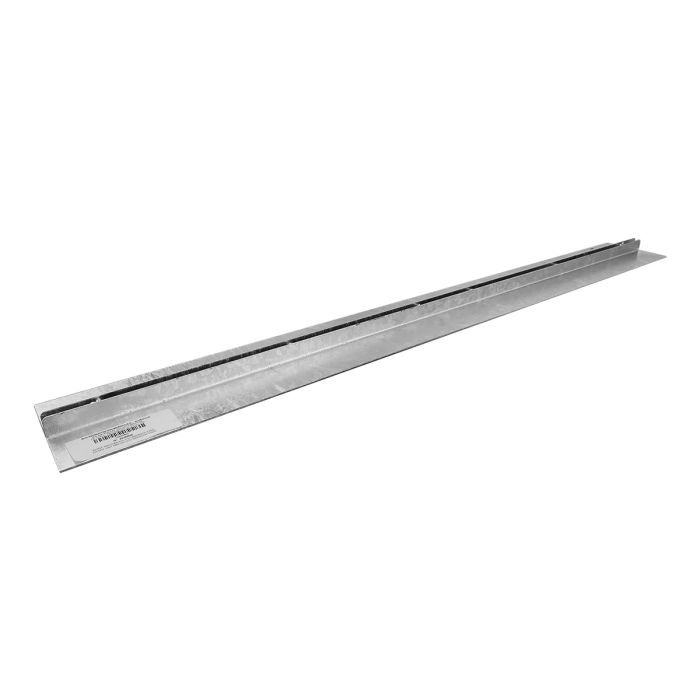

Grate type brickslot T in galvanised steel, with load class A15 in accordance with EN1433, for surface drainage channels type ACO SELF 100. Intake area of 100 cm²/m. Lenght overall 1000 mm, external height 31 mm and external width 118 mm. Unit weight: 2 kg.
Technical Specifications
Dimensions
- Model:
- SELF 100
- Length (mm):
- 1000
- Width overall (mm):
- 118
- Total height (mm):
- 31
- Weight (kg):
- 2
- Intake area (cm²/m):
- 100
- Load Class:
- A15
