Description

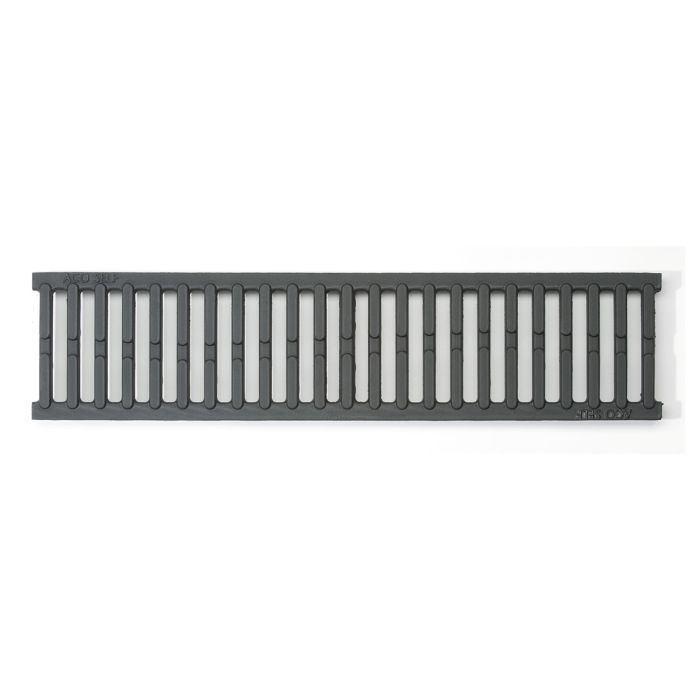

Grate type slotted in cast iron, with load class B125 in accordance with EN1433, for surface drainage channels type ACO SELF 100. Locking system by clip. Intake area of 470 cm²/m. Lenght overall 500 mm, external height 17,5 mm and external width 118 mm. Unit weight: 2,4 kg.
Technical Specifications
Dimensions
- Total height (mm):
- 17,5
- Weight (kg):
- 2,4
- Intake area (cm²/m):
- 470
- Load Class:
- B125
- Total external height (mm):
- 50
- Model:
- SELF 100
- Length (mm):
- 500
- Width overall (mm):
- 118
