Description

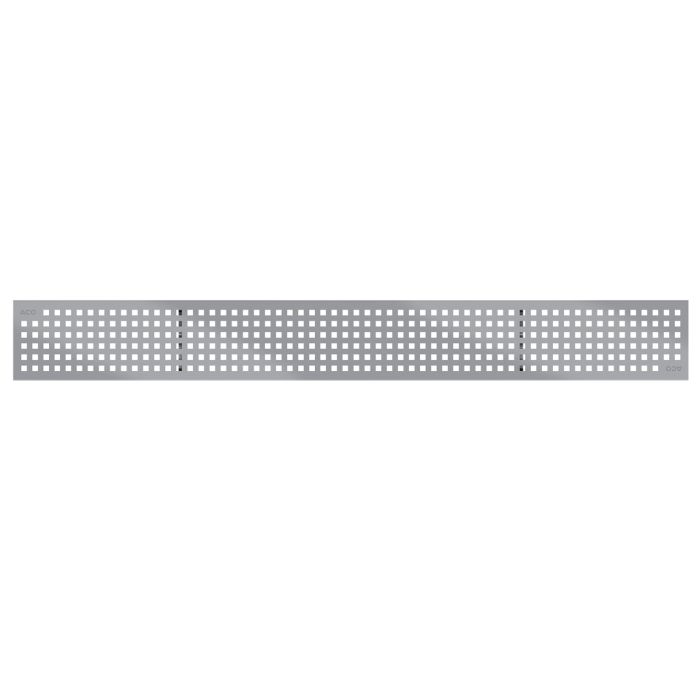

Grate type heelsafe square perforated in stainless steel AISI 304, with load class A15 in accordance with EN1433, for surface drainage channels type ACO SELF 100. Locking system by clip. Intake area of 227,84 cm²/m. Lenght overall 1000 mm, external height 18 mm and external width 119 mm. Unit weight: 2 kg.
Technical Specifications
Dimensions
- Model:
- SELF 100
- Length (mm):
- 1000
- Width overall (mm):
- 119
- Total height (mm):
- 18
- Weight (kg):
- 2
- Intake area (cm²/m):
- 227,84
- Load Class:
- A15
