Description

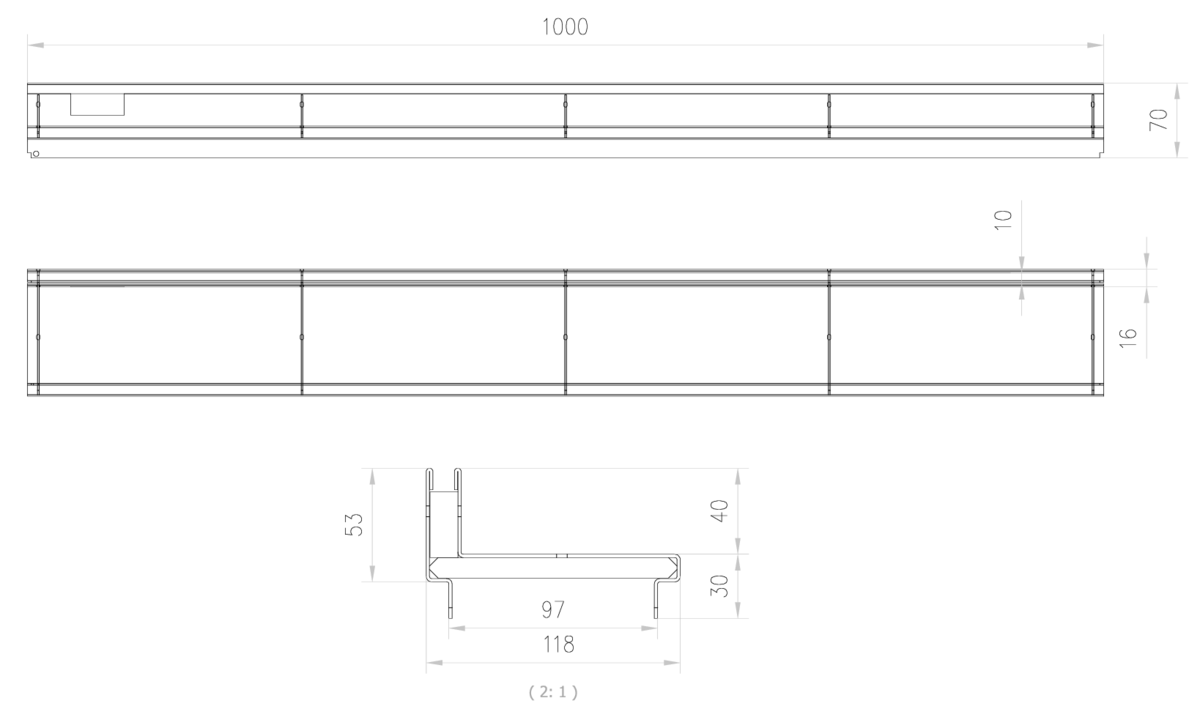

Grate type brickslot L in galvanised steel, with load class B125 in accordance with EN1433, for surface drainage channels type ACO SELF 100. Intake area of 100 cm²/m. Lenght overall 1000 mm, external height 53 mm and external width 118 mm. Unit weight: 3,4 kg.
Technical Specifications
Dimensions
- Model:
- SELF 100
- Length (mm):
- 1000
- Width overall (mm):
- 118
- Total height (mm):
- 53
- Weight (kg):
- 3,4
- Intake area (cm²/m):
- 100
- Load Class:
- B125
- Total external height (mm):
- 70
