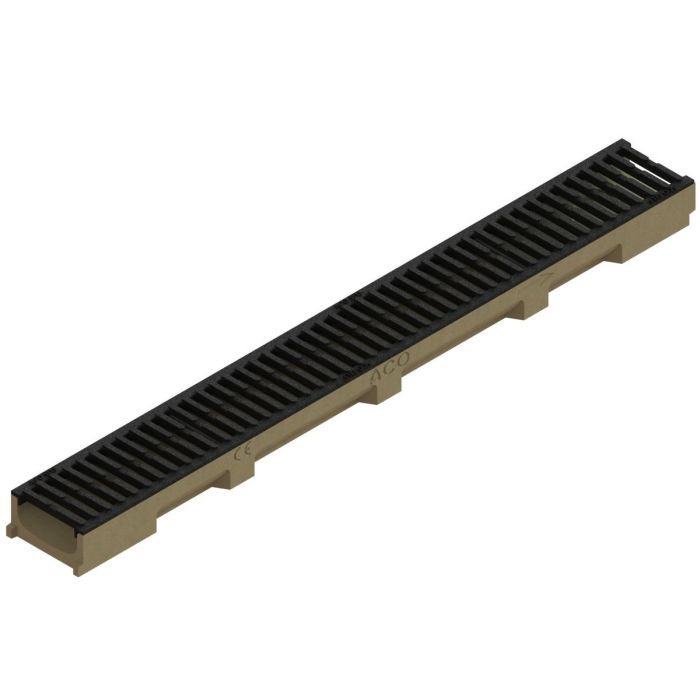

CHANNEL SELF 100 H55 WITH SLOTTED GRATING B125 CAST IRON W/LOCK CLIP
00330004
66,85 €
Description

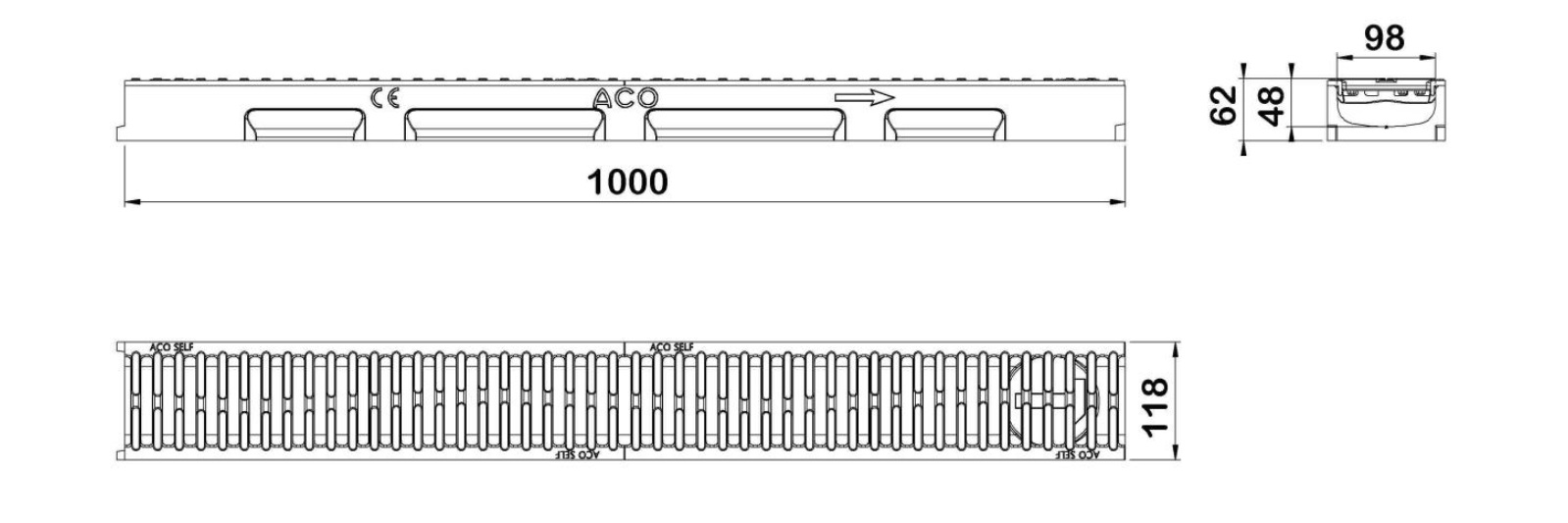

Set of drainage channel type ACO SELF 100 H55 in polymer concrete with grating type slotted in cast iron with load class B125 according to EN1433. With locking system by clip. Internal section 38 cm². With vertical preformed DN/OD 110. Total lenght 1000, overall heigth 55 mm and overall width 118 mm. Nominal width 98 mm. Weight: 9,7 kg.
Technical Specifications
Dimensions
- Length (mm):
- 1000
- Width (mm):
- 118
- Height (mm):
- 55
- Weight (kg):
- 9,7
- Intake area (cm2/m):
- 470
- Load class:
- B125
- Flow rate (l/s):
- 0,9
- Internal section (cm²):
- 38
- Preformed:
- DN/OD 110
- Locking system:
- clip
- Channel material:
- polymer concrete
- Grating material:
- cast iron
- Model:
- SELF 100
- :
