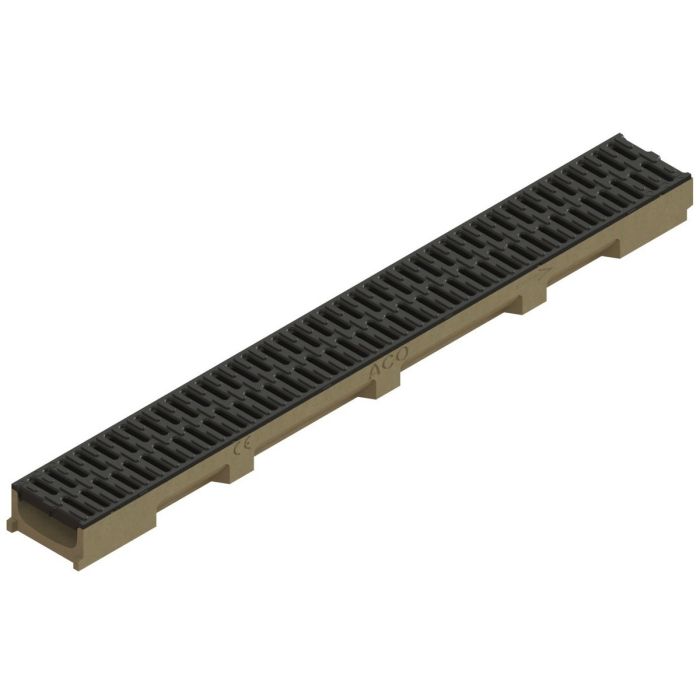

CHANNEL SELF 100 H55 WITH ANTIT SLOTTED WITH MICROGRIP GRATING A15 POLYPROPYLENE W/LOCK CLIP
00304435
42,00 €
Description

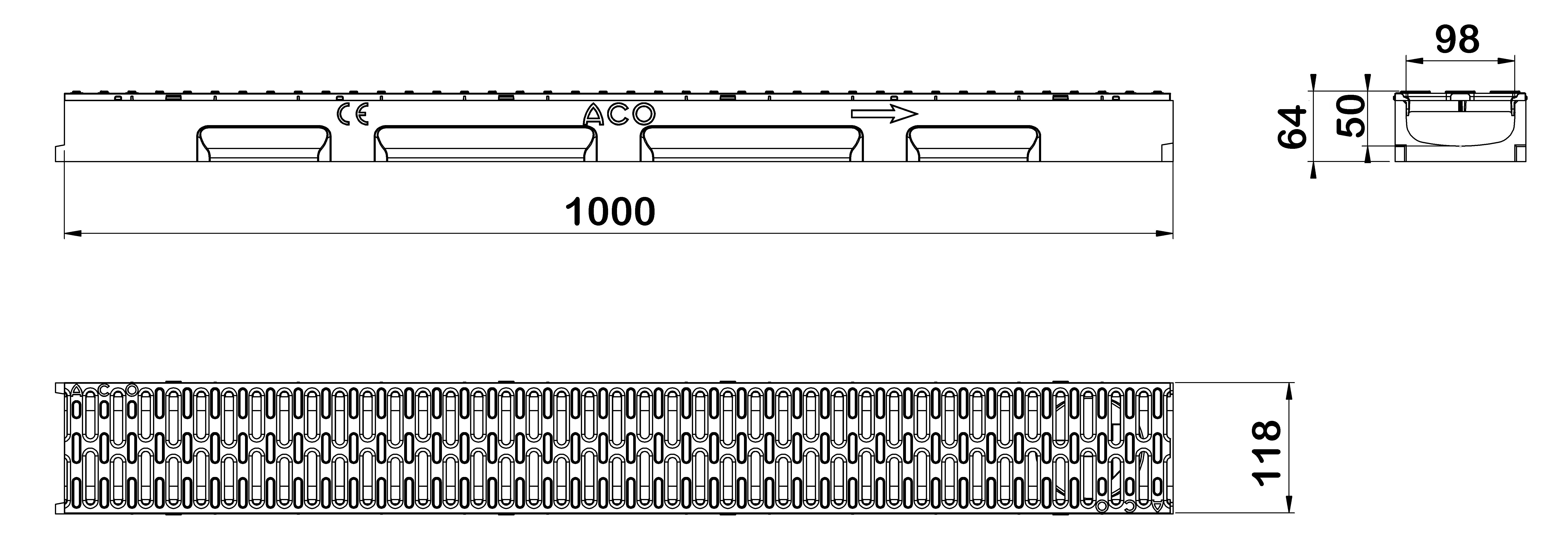

Set of drainage channel type ACO SELF 100 H55 in polymer concrete with grating type heelsafe slotted with microgrip in Polypropylene with load class A15 according to EN1433. With locking system by clip. Internal section 38 cm². With vertical preformed DN/OD 110. Total lenght 1000, overall heigth 55 mm and overall width 118 mm. Nominal width 98 mm. Weight: 5,53 kg.
Technical Specifications
Dimensions
- Load class:
- A15
- Flow rate (l/s):
- 0,9
- Internal section (cm²):
- 38
- Preformed:
- DN/OD 110
- Locking system:
- clip
- Channel material:
- polymer concrete
- Grating material:
- Polypropylene
- Model:
- SELF 100
- Length (mm):
- 1000
- Width (mm):
- 118
- Height (mm):
- 55
- Weight (kg):
- 5,53
- Intake area (cm2/m):
- 254
- :
Catalogs
Technical datasheets
Manuals and installation sections
-

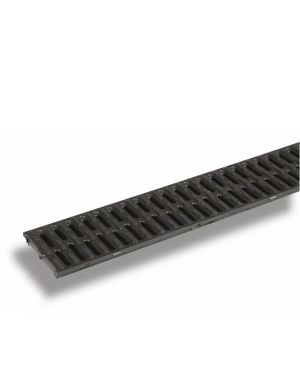

GRATE HEXALINE 100 L1000 A15 PP PAS MICG ANTIT W/FIX CLIP BLACK 00319250Price excluding VAT16,62 € -
