CHANNEL SELF 100 H95 WITH ANTIT SLOTTED WITH MICROGRIP GRATING A15 POLYPROPYLENE W/LOCK CLIP
00303893
47,88 €
Description

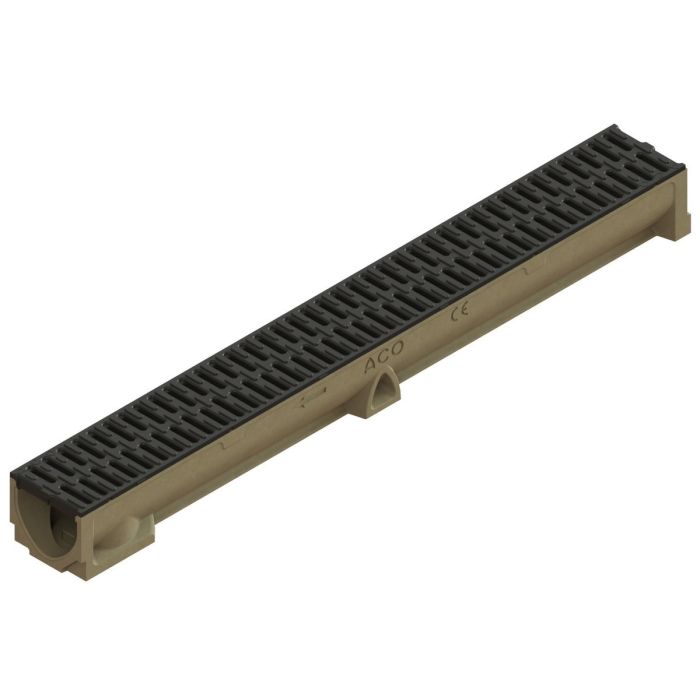

Set of drainage channel type ACO SELF 100 H95 in polymer concrete with grating type heelsafe slotted with microgrip in Polypropylene with load class A15 according to EN1433. With locking system by clip. Internal section 70 cm². With vertical preformed DN/OD 110. Total lenght 1000, overall heigth 95 mm and overall width 118 mm. Nominal width 98 mm. Weight: 7,23 kg.
Technical Specifications
Dimensions
- Locking system:
- clip
- Channel material:
- polymer concrete
- Grating material:
- Polypropylene
- Model:
- SELF 100
- Length (mm):
- 1000
- Width (mm):
- 118
- Height (mm):
- 95
- Weight (kg):
- 7,23
- Intake area (cm2/m):
- 254
- Load class:
- A15
- Flow rate (l/s):
- 2,5
- Internal section (cm²):
- 70
- Preformed:
- DN/OD 110
- :
