CHANNEL SELF 100 H95 WITH ANTIT LADDER GRATING A15 STAINLESS STEEL AISI 304 W/LOCK SPRINGLOCK
00038710
264,61 €
Description

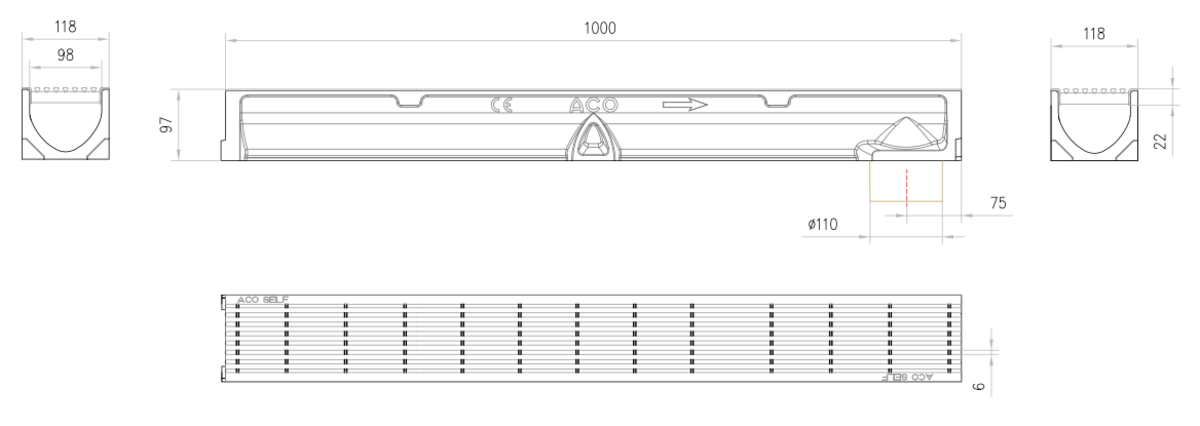

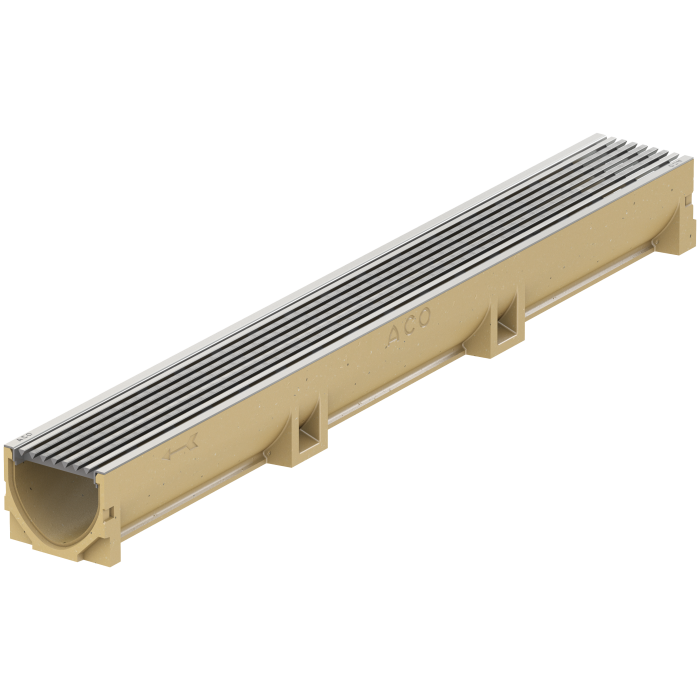

Set of drainage channel type ACO SELF 100 H95 in polymer concrete with grating type heelsafe ladder in stainless steel AISI 304 with load class A15 according to EN1433. With locking system by SPRINGLOCK. Internal section 70 cm². With vertical preformed DN/OD 110. Total lenght 1000, overall heigth 95 mm and overall width 118 mm. Nominal width 98 mm. Weight: 8,6 kg.
Technical Specifications
Dimensions
- Model:
- SELF 100
- Length (mm):
- 1000
- Width (mm):
- 118
- Height (mm):
- 95
- Weight (kg):
- 10,1
- Intake area (cm2/m):
- 440
- Load class:
- A15
- Flow rate (l/s):
- 2,5
- Internal section (cm²):
- 70
- Preformed:
- DN/OD 110
- Locking system:
- SPRINGLOCK
- Channel material:
- polymer concrete
- Grating material:
- stainless steel AISI 304
- :
Catalogs
Technical datasheets
Manuals and installation sections
-

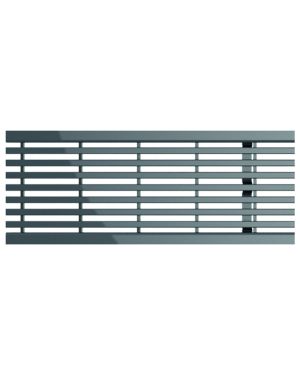

GRATE SELF 100 L1000 A15 AISI304 BAR PERFIL T W/FIX SPRINGLOCK 00010323Price excluding VAT233,36 € -
