LIGHT OIL SEP UNDERG. OLEOPASS C NS8/80-ST1600 DN315 W/COVER A2 T1230

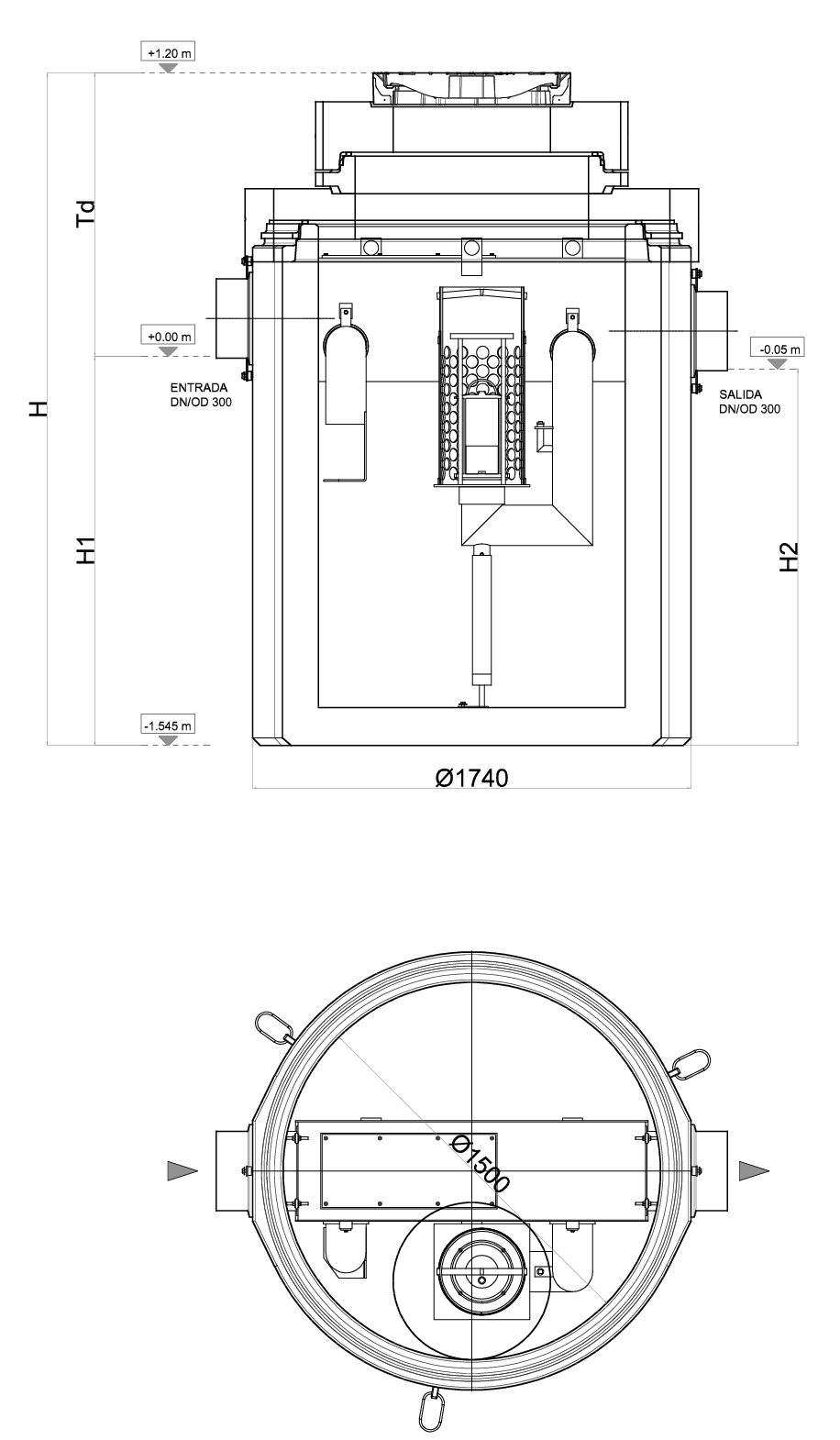

Light oil separator assembly ACO model OLEOPASS-C NS8/80 ST1600, for underground installation, with vertical design made in reinforced concrete monolithic, antifloatability with inner coating. Separator Class I (5 ppm) according to UNE EN 858, nominal size 8 l/s and with By-pass sistem interno for a maximun flow rate of 80 l/s, with integrated sludge trap of 1600 l, total capacity of light oils retention of 378 l and a total volume of 2439 l. The separator is formed by Inlet and outlet connections DN315 in high density polyethylene (HDPE). Include inlet deflector, removable coalescent filter and outlet with calibrated floater to 0,90gr/cm³ for automatic closing in case of light oil excess. With 2860 mm height and Ø1800 mm diameter, dispose of 1 access opening with diameter (1xØ600). Include top section made in reinforced concrete with D400 cover type A2 in cast iron. Possibility of height adjustment with concrete projections. Total weight:6862 kg.
