LIGHT OIL SEP UNDERG. OLEOPASS C NS8/80-ST1600 DN315

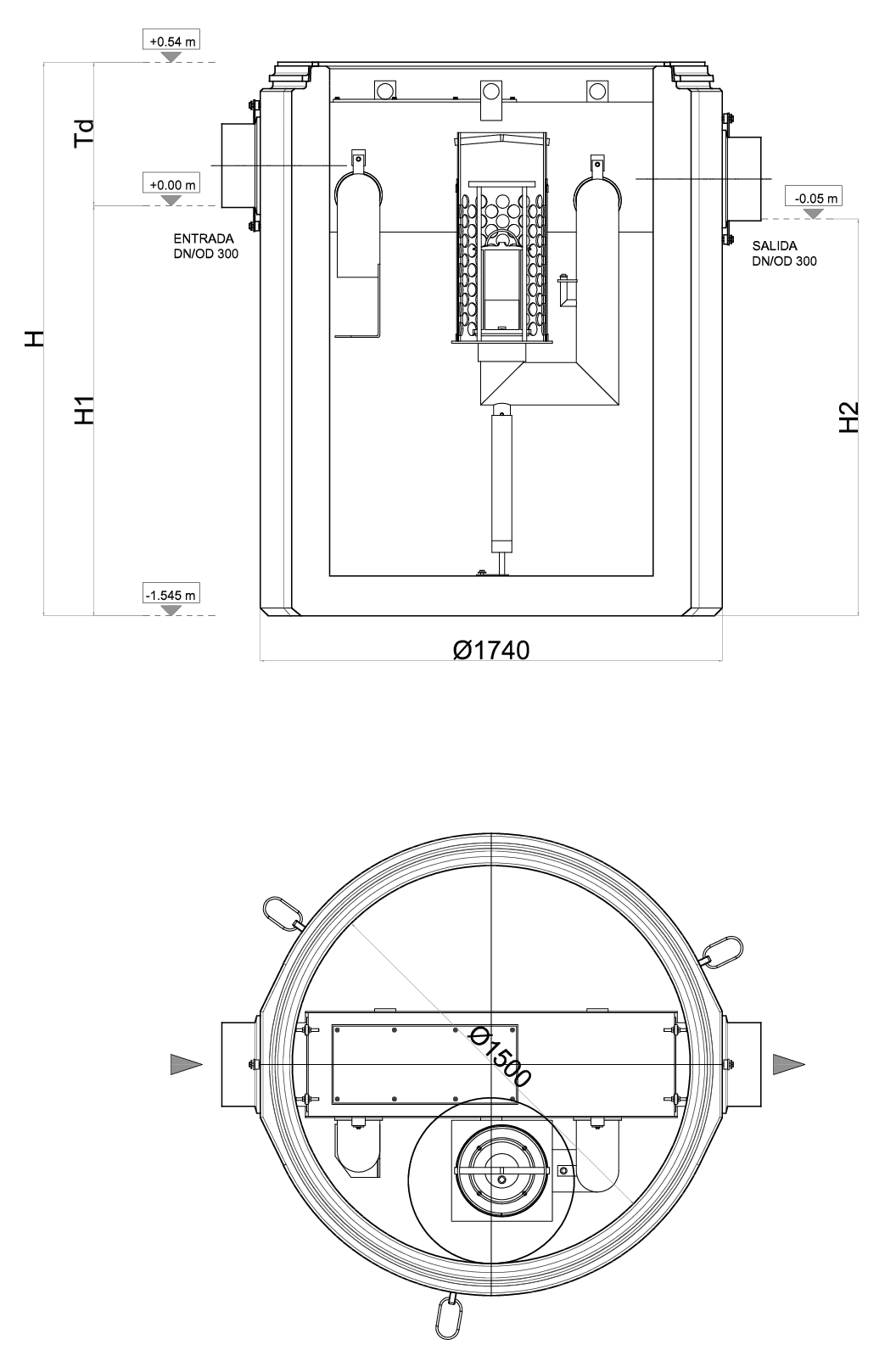

ACO light oil separator model OLEOPASS C NS8/80 ST1600, for underground installation, with vertical design made in reinforced concrete monolithic, antifloatability with inner coating. Separator Class I (5 ppm) according to UNE EN 858, nominal size 8 l/s and with By-pass sistem interno for a maximun flow rate of 80 l/s, with integrated sludge trap of 1600 l, total capacity of light oils retention of 378 l and a total volume of 2439 l. The separator is formed by Inlet and outlet connections DN315 in high density polyethylene (HDPE). Include inlet deflector and outlet with calibrated floater to 0,90gr/cm³ for automatic closing in case of light oil excess. With 2265 mm height and Ø1800 mm diameter Total weight:5305 kg.
