Description

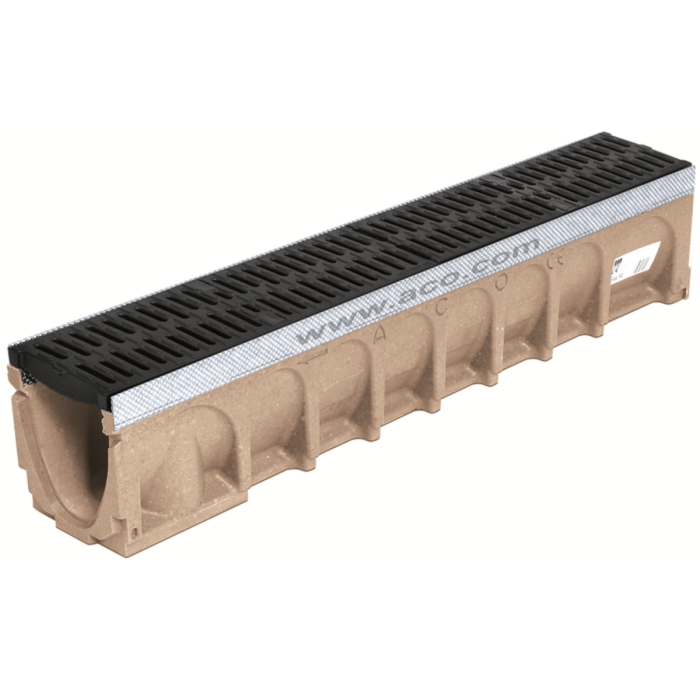

Set of drainage channel type ACO MULTIDRAIN 200 H265 in polymer concrete with grating type slotted in cast iron with load class D400 according to EN1433. With locking system by Drainlock®. Internal section 310 cm². With vertical preformed DN/OD 160. Grating absortion area of 740 cm²/m. Total lenght 1000, overall heigth 265 mm and overall width 235 mm. Nominal width 200 mm. Weight: 39,4 kg.
Technical Specifications
Dimensions
- Model:
- MULTIDRAIN 200
- Length (mm):
- 1000
- Width (mm):
- 235
- Height (mm):
- 265
- Weight (kg):
- 59,4
- Intake area (cm2/m):
- 740
- Load class:
- D400
- Flow rate (l/s):
- 18,5
- Internal section (cm²):
- 310
- Preformed:
- DN/OD 160
- Locking system:
- Drainlock®
- :
