Description

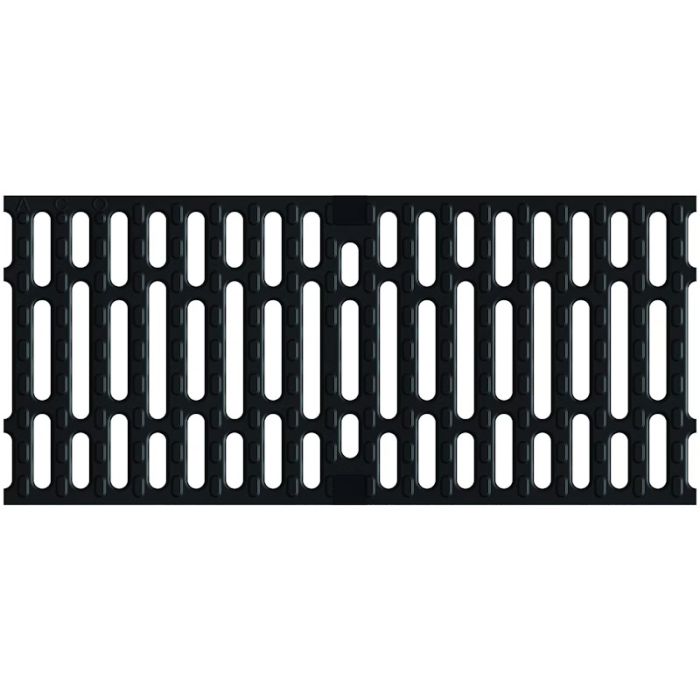

Grate type slotted in cast iron, with load class D400 in accordance with EN1433, for surface drainage channels type ACO MULTIDRAIN/ MULTILINE/XTRADRAIN 200. Locking system by Drainlock®. Intake area of 740 cm²/m. Lenght overall 500 mm, external height 21 mm and external width 223 mm. Unit weight: 10 kg.
Technical Specifications
Dimensions
- Total external height (mm):
- 40
- Model:
- MULTIDRAIN/ MULTILINE/XTRADRAIN 200
- Length (mm):
- 500
- Width overall (mm):
- 223
- Total height (mm):
- 21
- Weight (kg):
- 10
- Intake area (cm²/m):
- 740
- Load Class:
- D400
