Description

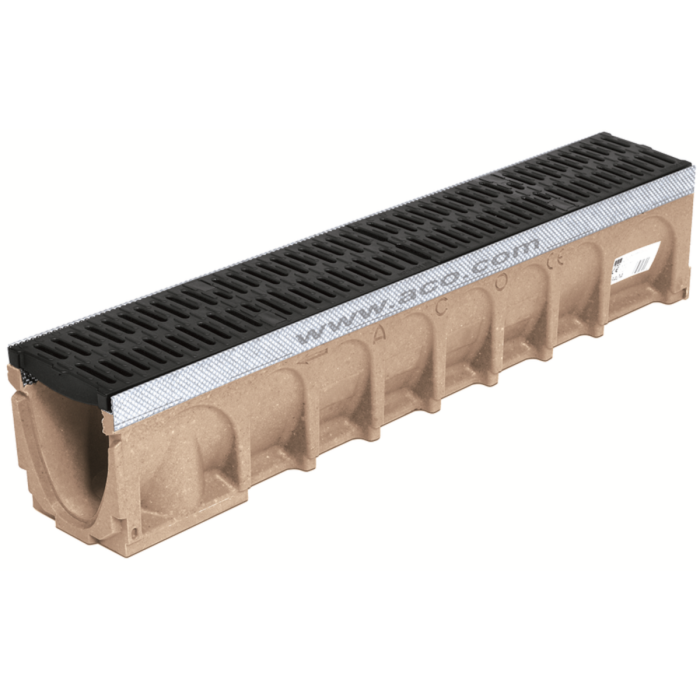

Set of drainage channel type ACO MULTIDRAIN 150 H210 in polymer concrete with grating type slotted in cast iron with load class D400 according to EN1433. With locking system by Drainlock®. Internal section 178 cm². With vertical preformed DN/OD 160. Grating absortion area of 578 cm²/m. Total lenght 1000, overall heigth 210 mm and overall width 185 mm. Nominal width 150 mm. Weight: 29 kg.
Technical Specifications
Dimensions
- Height (mm):
- 210
- Weight (kg):
- 42,2
- Intake area (cm2/m):
- 578
- Load class:
- D400
- Model:
- MULTIDRAIN 150
- Length (mm):
- 1000
- Width (mm):
- 185
- Flow rate (l/s):
- 8,8
- Internal section (cm²):
- 178
- Preformed:
- DN/OD 160
- Locking system:
- Drainlock®
- :
