Description

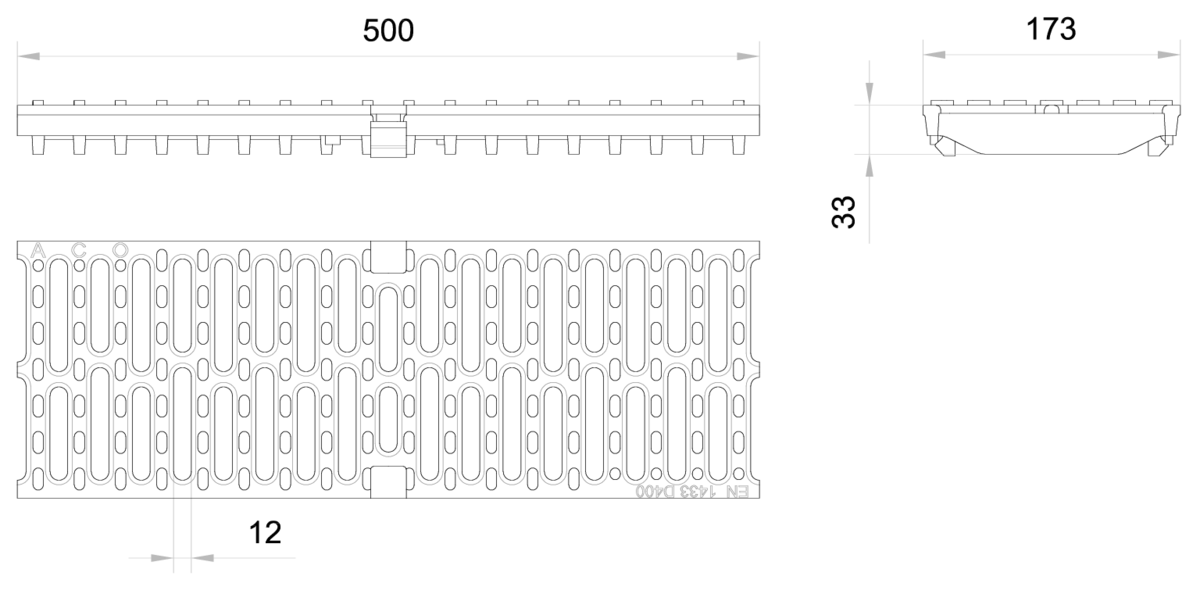

Grate type slotted in cast iron, with load class D400 in accordance with EN1433, for surface drainage channels type ACO MULTIDRAIN/ MULTILINE/XTRADRAIN 150. Locking system by Drainlock®. Intake area of 578 cm²/m. Lenght overall 500 mm, external height 21 mm and external width 173 mm. Unit weight: 6,6 kg.
Technical Specifications
Dimensions
- Weight (kg):
- 6,6
- Intake area (cm²/m):
- 578
- Load Class:
- D400
- Total external height (mm):
- 33
- Model:
- MULTIDRAIN/ MULTILINE/XTRADRAIN 150
- Length (mm):
- 500
- Width overall (mm):
- 173
- Total height (mm):
- 21
