CHANNEL MD 100 0.0 H150 WITH ANTIT SLOTTED WITH MICROGRIP GRATING C250 COMPOSITE
C0002017
153,82 €
Description

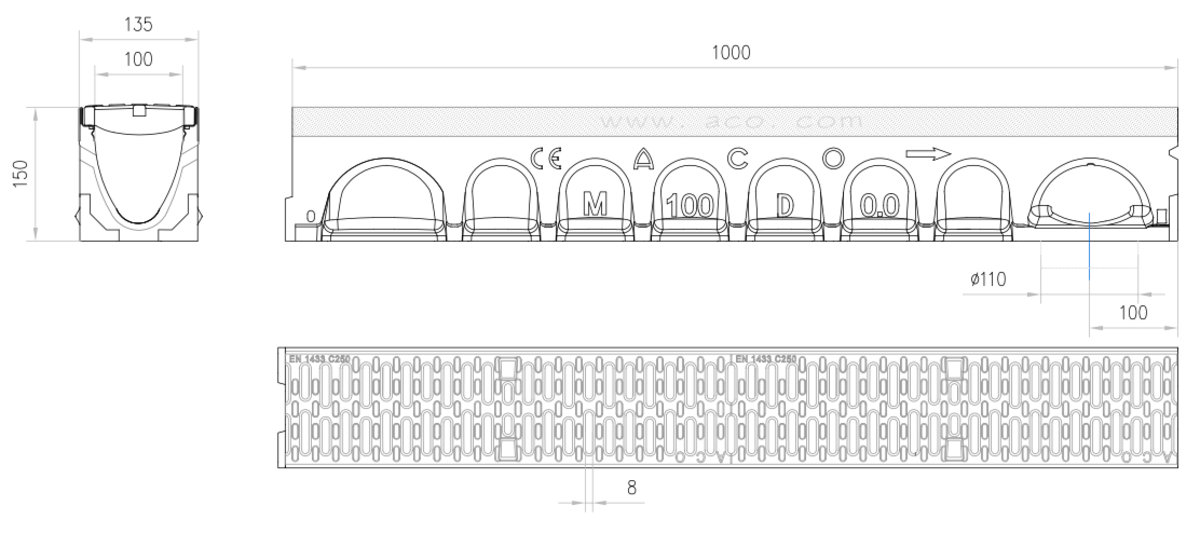

Set of drainage channel type ACO MULTIDRAIN 100 H150 in polymer concrete with grating type heelsafe slotted with microgrip in composite with load class C250 according to EN1433. With locking system by Drainlock®. Internal section 82 cm². With vertical preformed DN/OD 110. Grating absortion area of 284 cm²/m. Total lenght 1000, overall heigth 150 mm and overall width 135 mm. Nominal width 100 mm. Weight: 13,5 kg.
Technical Specifications
Dimensions
- Model:
- MULTIDRAIN 100
- Length (mm):
- 1000
- Width (mm):
- 135
- Height (mm):
- 150
- Weight (kg):
- 15,5
- Intake area (cm2/m):
- 284
- Load class:
- C250
- Flow rate (l/s):
- 3,1
- Internal section (cm²):
- 82
- Preformed:
- DN/OD 110
- Locking system:
- Drainlock®
- :
