Description

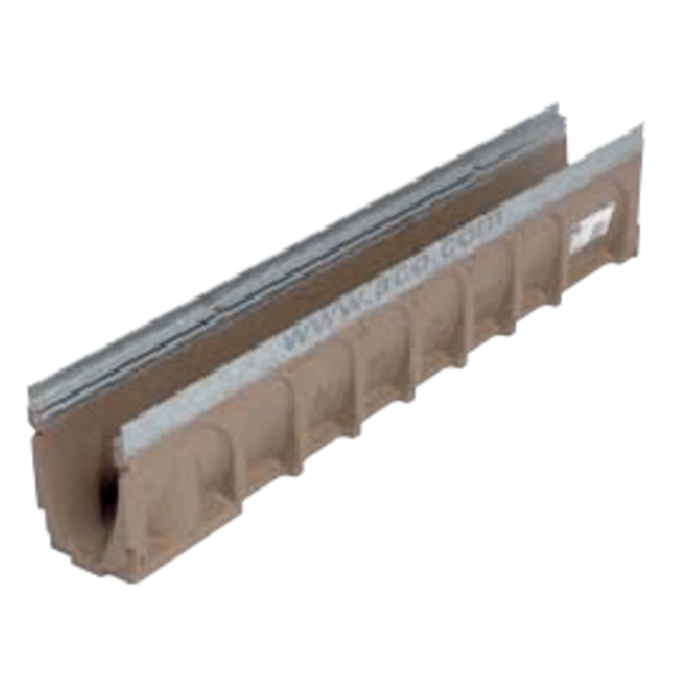

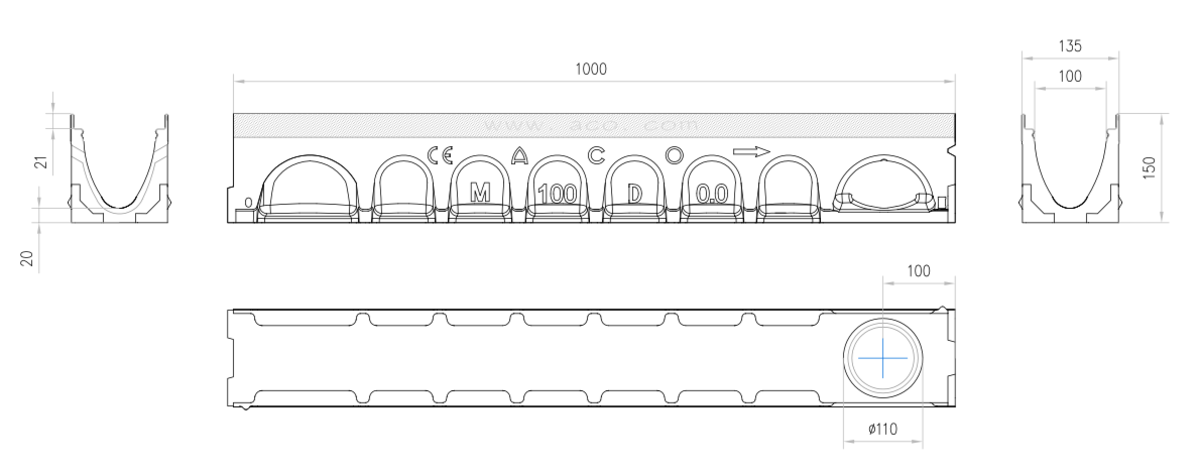

Drainage channel type ACO MULTIDRAIN 100 0.0 H150 in polymer concrete, load class D400 according to EN-1433. Without grating. With locking system by Drainlock® over galvanised edge rails integrated on channel body wall. With internal section 82 cm² and V-shape optimized transverse section. With vertical preformed DN/OD 110. Total length 1000 mm, overall heigth 150 mm and overall width 135 mm. Nominal width 100 mm. Weight: 13,5 kg.
Technical Specifications
Dimensions
- Model:
- MULTIDRAIN 100 0.0
- Length (mm):
- 1000
- Width (mm):
- 135
- Height (mm):
- 150
- Weight (kg):
- 13,5
- Load class:
- D400
- Flow rate (l/s):
- 3,1
- Internal section (cm²):
- 82
- :
