Description

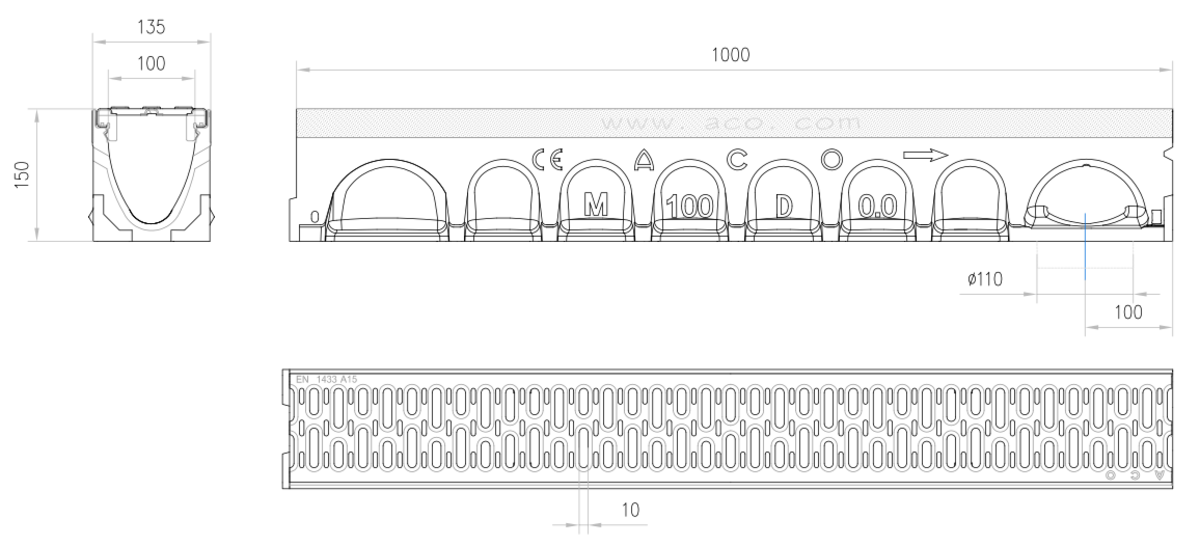

Set of drainage channel type ACO MULTIDRAIN 100 H150 in polymer concrete with grating type heelsafe slotted in galvanised with load class A15 according to EN1433. With locking system by Drainlock®. Internal section 82 cm². With vertical preformed DN/OD 110. Grating absortion area of 312 cm²/m. Total lenght 1000, overall heigth 150 mm and overall width 135 mm. Nominal width 100 mm. Weight: 13,5 kg.
Technical Specifications
Dimensions
- Model:
- MULTIDRAIN 100
- Length (mm):
- 1000
- Width (mm):
- 135
- Height (mm):
- 150
- Weight (kg):
- 15,4
- Intake area (cm2/m):
- 312
- Load class:
- A15
- Flow rate (l/s):
- 3,1
- Internal section (cm²):
- 82
- Preformed:
- DN/OD 110
- Locking system:
- Drainlock®
- :
