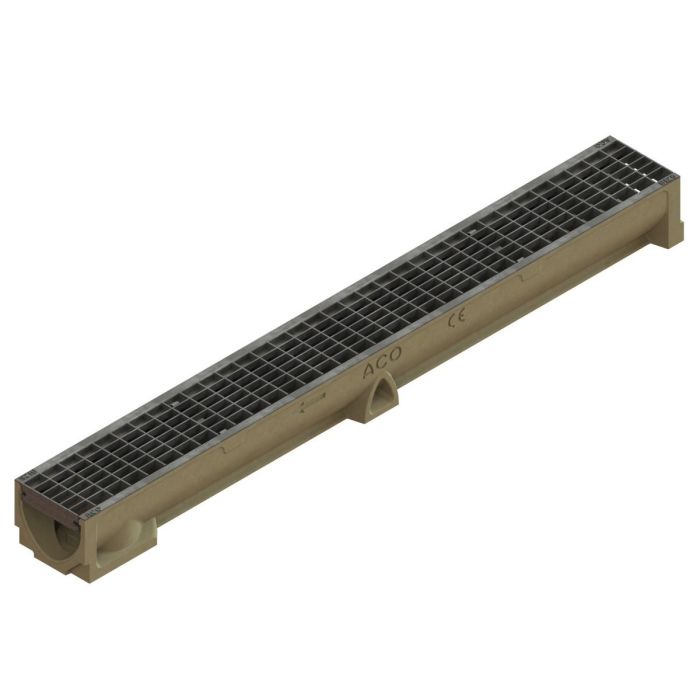

CHANNEL SELF 100 H95 WITH MESH GRATING B125 GALVANISED W/LOCK CLIP
00330022
108,19 €
Description
Set of drainage channel type ACO SELF 100 H95 in polymer concrete with grating type mesh 27x13 in galvanised with load class B125 according to EN1433. With locking system by clip. Internal section 70 cm². With vertical preformed DN/OD 110. Total lenght 1000, overall heigth 95 mm and overall width 118 mm. Nominal width 98 mm. Weight: 10,3 kg.
Technical Specifications

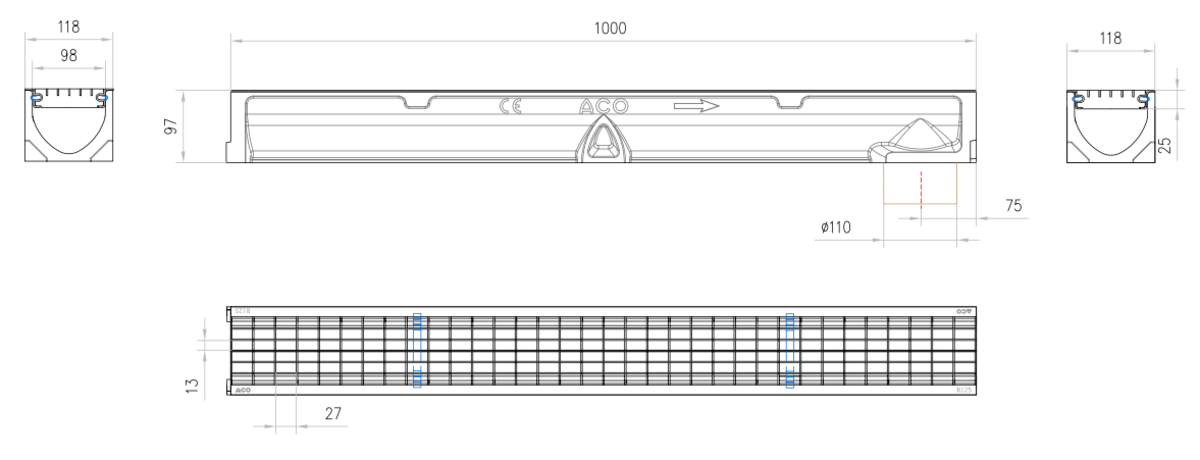

Dimensions
- Model:
- SELF 100
- Length (mm):
- 1000
- Width (mm):
- 118
- Height (mm):
- 95
- Weight (kg):
- 10,3
- Intake area (cm2/m):
- 798
- Load class:
- B125
- Flow rate (l/s):
- 2,5
- Internal section (cm²):
- 70
- Preformed:
- DN/OD 110
- Locking system:
- clip
- Channel material:
- polymer concrete
- Grating material:
- galvanised
- :
