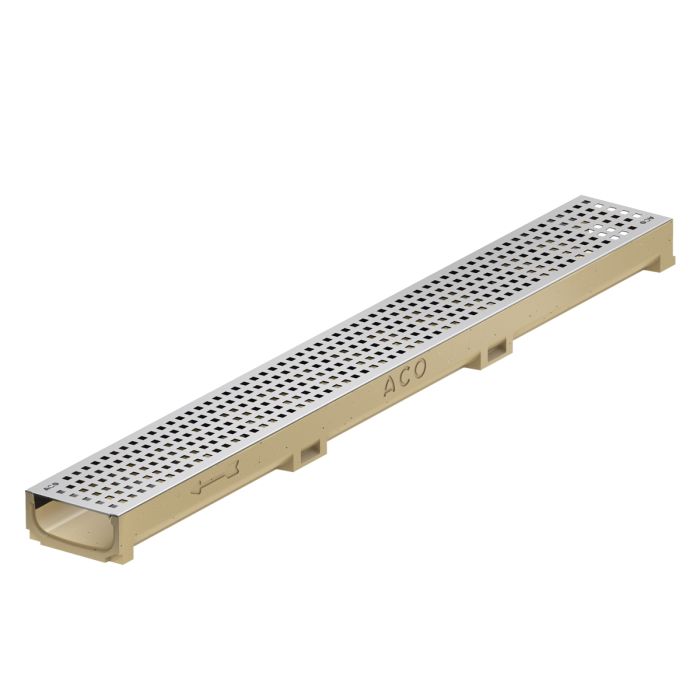

CHANNEL SELF 100 H55 WITH ANTIT SQUARE PERFORATED GRATING K3 STAINLESS STEEL AISI 304 W/LOCK CLIP
00330006
154,88 €
Description

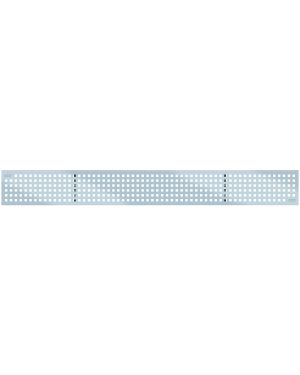

Set of drainage channel type ACO SELF 100 H55 in polymer concrete with grating type heelsafe square perforated in stainless steel AISI 304 with load class K3 according to EN1253. With locking system by clip. Internal section 38 cm². With vertical preformed DN/OD 110. Total lenght 1000, overall heigth 55 mm and overall width 118 mm. Nominal width 98 mm. Weight: 5,85 kg.
Technical Specifications
Dimensions
- Flow rate (l/s):
- 0,9
- Internal section (cm²):
- 38
- Preformed:
- DN/OD 110
- Locking system:
- clip
- Channel material:
- polymer concrete
- Grating material:
- stainless steel AISI 304
- Model:
- SELF 100
- Length (mm):
- 1000
- Width (mm):
- 118
- Height (mm):
- 55
- Weight (kg):
- 5,85
- Intake area (cm2/m):
- 230,5
- Load class:
- K3
- :
