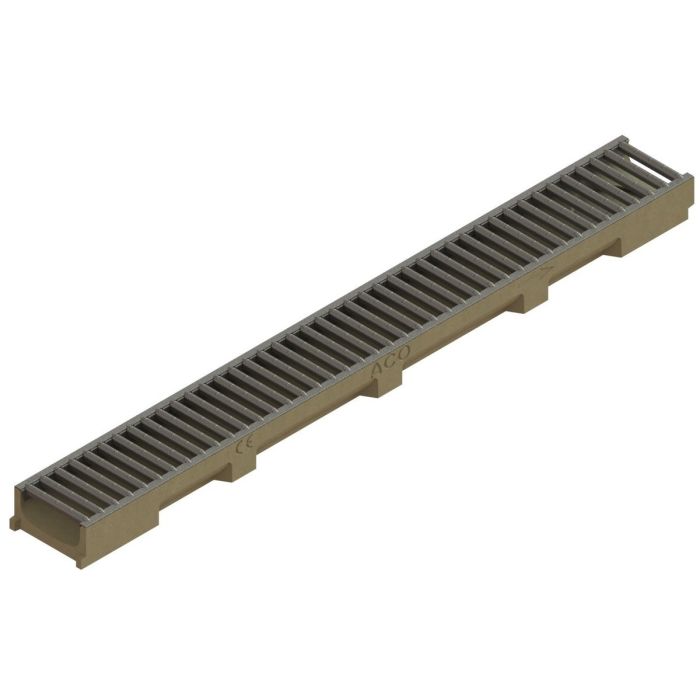

CHANNEL SELF 100 H55 WITH SLOTTED GRATING A15 STAINLESS STEEL AISI 304 W/LOCK CLIP
00304437
128,64 €
Description
Set of drainage channel type ACO SELF 100 H55 in polymer concrete with grating type slotted in stainless steel AISI 304 with load class A15 according to EN1433. With locking system by clip. Internal section 38 cm². With vertical preformed DN/OD 110. Total lenght 1000, overall heigth 55 mm and overall width 118 mm. Nominal width 98 mm. Weight: 6,3 kg.
Technical Specifications
Dimensions
- Model:
- SELF 100
- Length (mm):
- 1000
- Width (mm):
- 118
- Height (mm):
- 55
- Weight (kg):
- 6,3
- Intake area (cm2/m):
- 468,3
- Load class:
- A15
- Flow rate (l/s):
- 0,9
- Internal section (cm²):
- 38
- Preformed:
- DN/OD 110
- Locking system:
- clip
- Channel material:
- polymer concrete
- Grating material:
- stainless steel AISI 304
- :
