INSP UNIT QMAX 150/225/350 150/225/350 W/SLOT D400 GALVANISED STEEL GR
00032977
3.876,32 €
Description

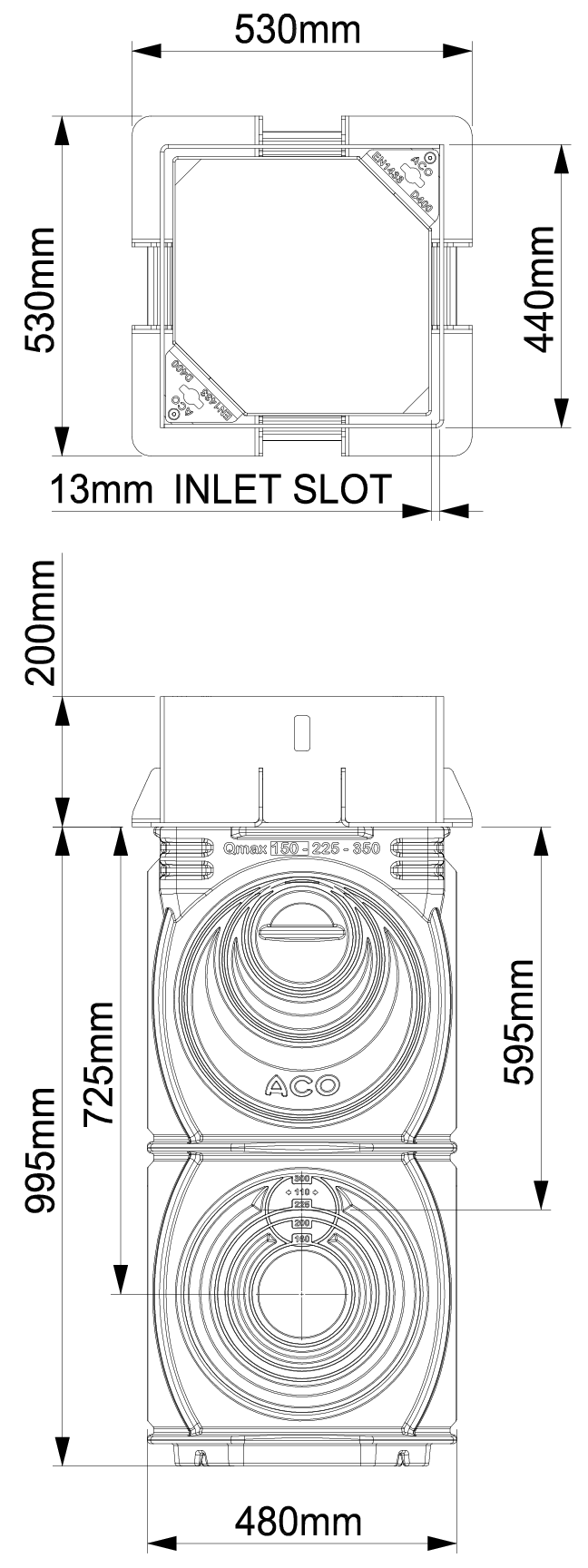

Inspection and registration unit for ACO QMAX 150/225/350 150/225/350 channels with body made in [**P002_L_ENG**] and with integrated removable grating type slot in galvanised steel, load class up to D400 according to EN 1433. Element with connection blanks for inlet/outlet to Qmax channels. Exterior measurements: total length 530 mm, exterior height 1195 mm and exterior width 530 mm. Visible cover frame measurements 440x440 mm. Weight: 59,5 kg.
Technical Specifications
Dimensions
- :
- :
- :
- :
- :
- :
- :
- :
