CHANNEL QMAX 225 Q-SLOT GS 2000MM H580 D400

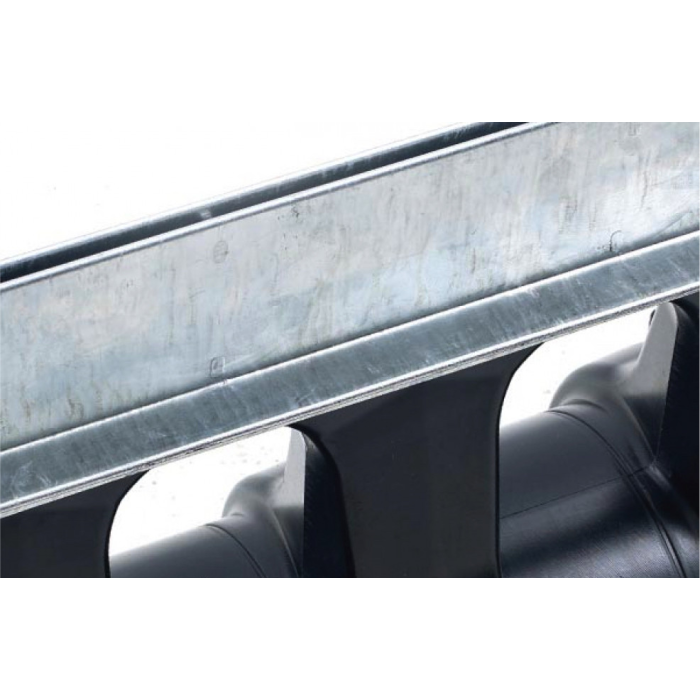

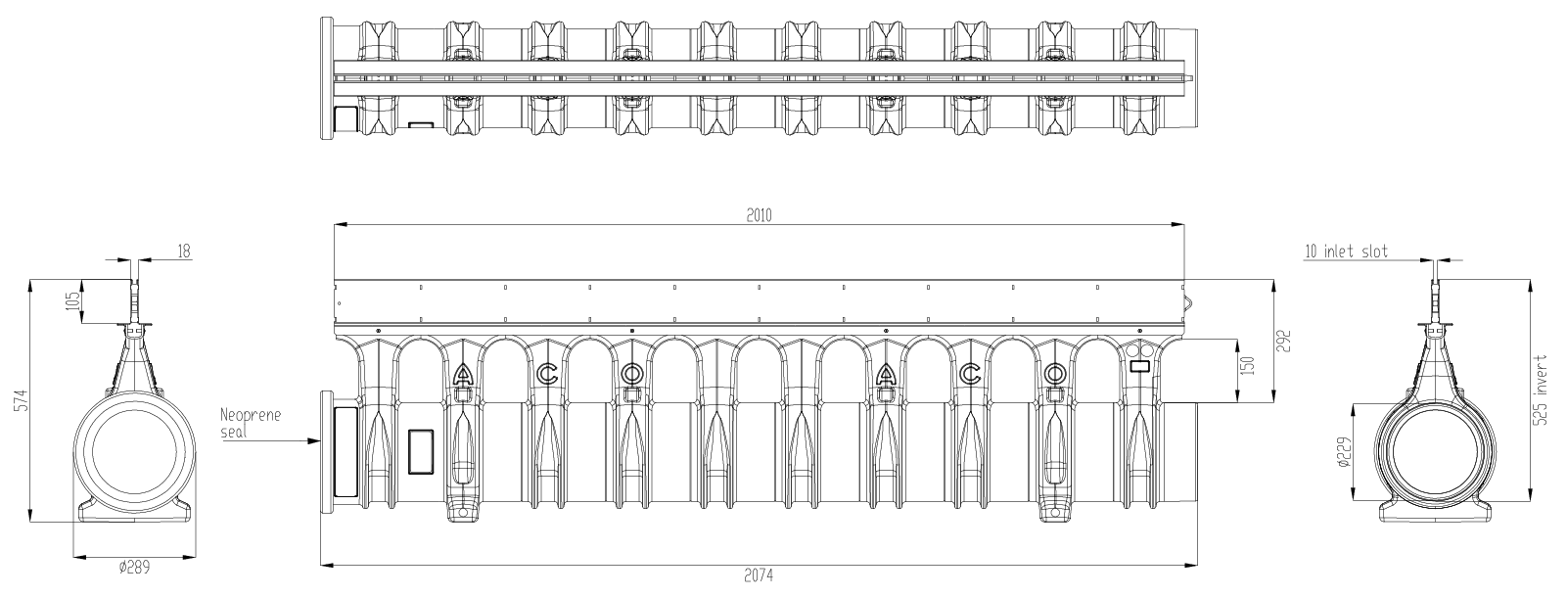

Set of drainage channel ACO QMAX 225 made in high-density polyethylene with integrated grating type ACO Q-Slot in galvanised, load class up to D400 according to EN1433. With an inner section of 398 cm². With EPDM watertight joint for connection and grating with templates for fixing to the pavement. Circular inner section with 398 cm². Total length of 2000 mm, external height 580 mm and external width Ø290 mm. Nominal internal width ø225 mm. Weight: 22,9 kg.
