Description

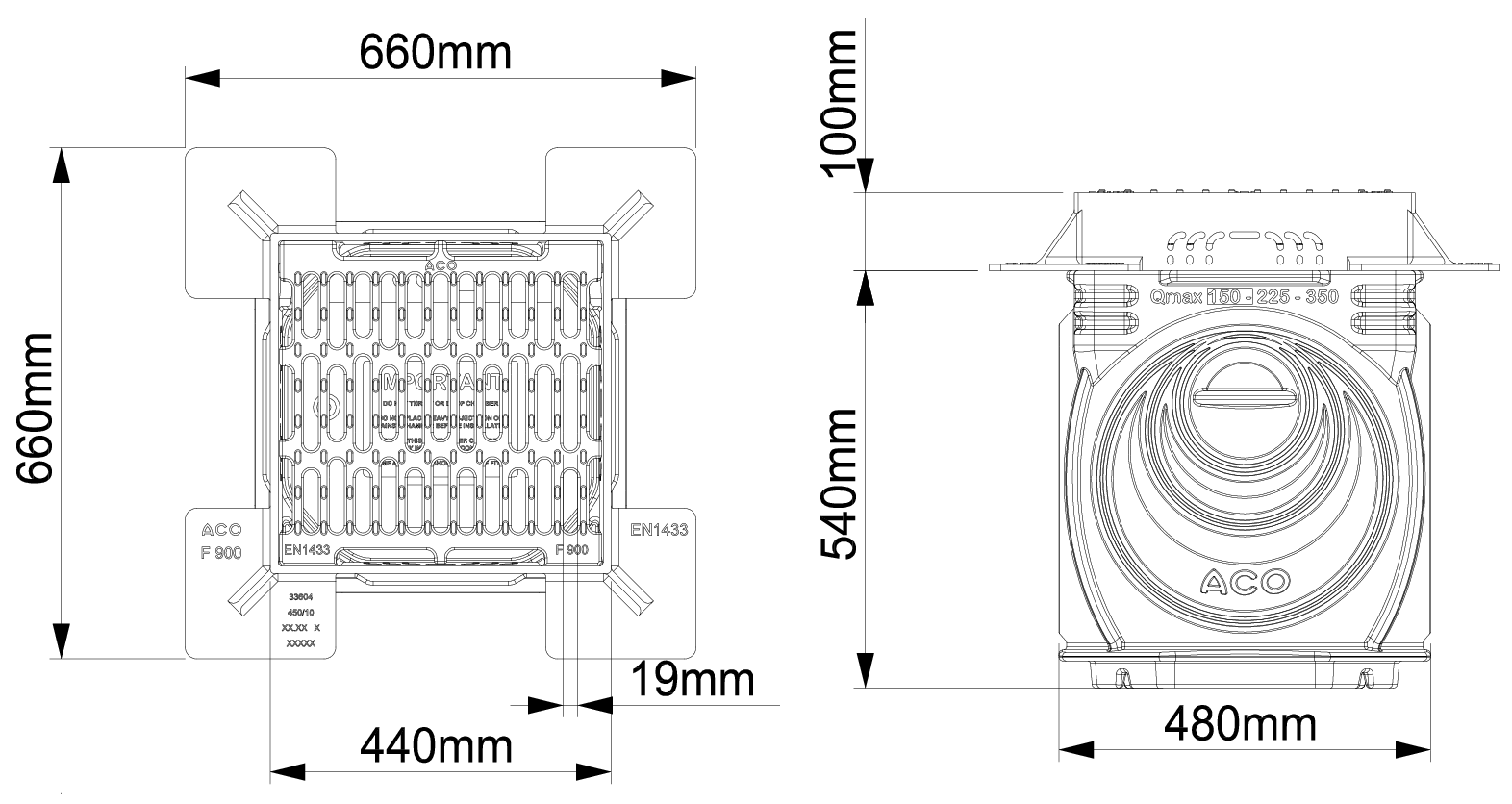

Inspection and registration unit for ACO QMAX 150/225/350 150/225/350 channels with body made in high-density polyethylene and with integrated removable grating type slot in cast iron, load class up to F900 according to EN 1433. Element with connection blanks for inlet/outlet to Qmax channels. Exterior measurements: total length 660 mm, exterior height 640 mm and exterior width 660 mm. Visible cover frame measurements 440x440 mm. Weight: 77,5 kg.
Technical Specifications
Dimensions
- Model:
- QMAX 150/225/350
- Weight (kg):
- 77,5
- Length (mm):
- 660
- Width (mm):
- 660
- Ext. Height (mm):
- 640
- Cover type:
- slot
- Cover length (mm):
- 440
- Cover width (mm):
- 440
