CHANNEL QMAX 225 Q-FLOW COMPOSITE 2000MM H480 F900 BLACK

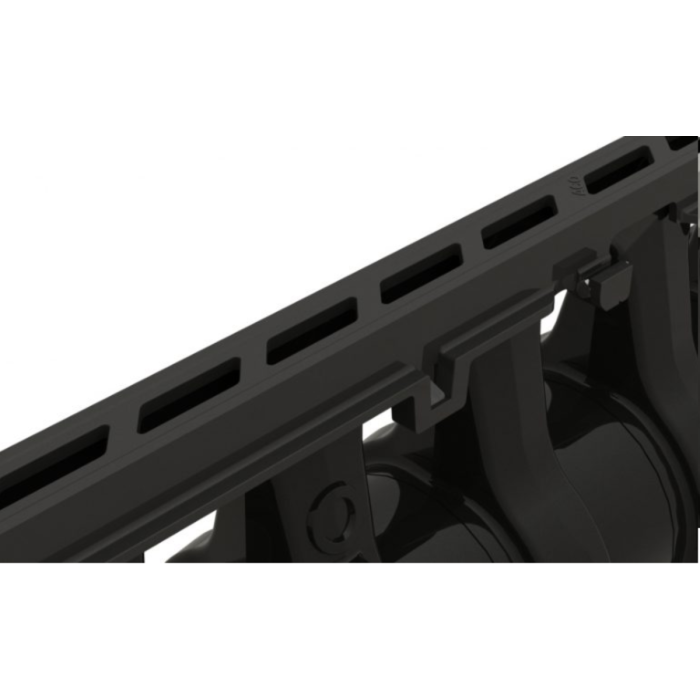

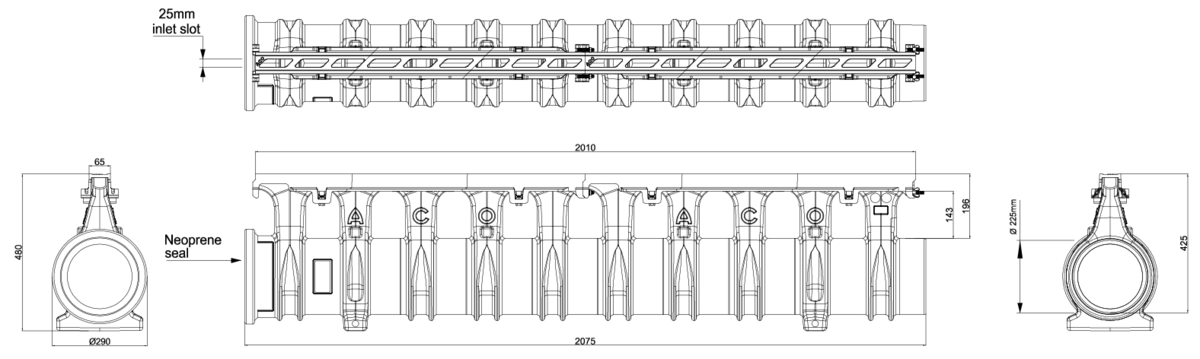

Set of drainage channel ACO QMAX 225 made in high-density polyethylene with integrated grating type ACO Q-Flow in composite, load class up to F900 according to EN1433. With an inner section of 398 cm². With EPDM watertight joint for connection and grating with templates for fixing to the pavement. Circular inner section with 398 cm². Total length of 2000 mm, external height 480 mm and external width Ø290 mm. Nominal internal width ø225 mm. Weight: 15,8 kg.
