Description

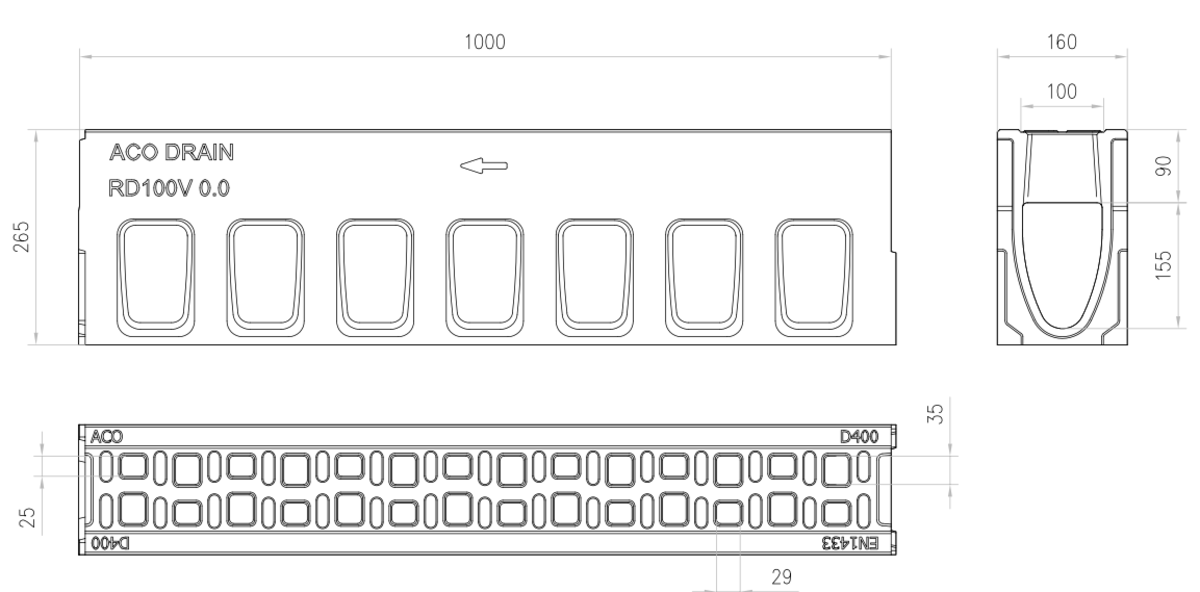

Drainage channel type ACO MONOBLOCK RD100V 0.0 in polymer concrete, load class F900 according to EN-1433. Monolithic with integrated grating in polymer concrete. With internal section of 125 cm² and with cross section in V. Total length of 1000 mm, external height 265 mm and outside width 160 mm. Nominal internal width of 100 mm. Weight: 52 kg.
Technical Specifications
Dimensions
- Model:
- MONOBLOCK RD100V
- Length (mm):
- 1000
- Width (mm):
- 160
- Height (mm):
- 265
- Weight (kg):
- 52
- Intake area (cm2/m):
- 308
- Load class:
- F900
- Flow rate (l/s):
- 6,1
- Internal section (cm²):
- 125
Catalogs
Technical datasheets
Manuals and installation sections
-
SUMP MONOBLOCK RD100V H525 DN/OD 160 W/GR PAS Fº F900 W/SILTB PLASTIC 00010772Price excluding VAT339,26 € -
CNL MONOBLOCK RD100V 0.1 500MM H270 DN 100 F900 W/GR PAS CAST IRON 00010775Price excluding VAT235,38 € -
CNL MONOBLOCK RD100V 0.2 500MM H275 C/JUNT LABIO DN 100 F900 W/GR PAS CAST IRON 00010778Price excluding VAT245,79 € -
-
-
