LIGHT OIL SEP UNDERG. OLEOPASS G-H NS200/2000-ST20000 DN1000 CONTAINER
WS021029
Project: Consult
Description
ACO light oil separator model OLEOPASS G-H NS200/2000 ST20000, for underground installation, with horizontal design made in glass-reinforced plastic (GRP). Separator Class I (5 ppm) according to UNE EN 858, nominal size 200 l/s and with By-pass sistem externo for a maximun flow rate of 2000 l/s, with integrated sludge trap of 20000 l, total capacity of light oils retention of 7230 l and a total volume of 37800 l. The separator is formed by Inlet and outlet connections DN1000 in glass-reinforced plastic (GRP). Include inlet deflector, removable coalescent filter and outlet with calibrated floater to 0,90gr/cm³ for automatic closing in case of light oil excess. With 2642 mm height, 11500 mm lenght and Ø2200 mm width, dispose of 4 access openings with . Total weight:3100 kg.
Characteristics
- Light oil separator with integrated by-pass system Class I (5 ppm) acording to UNE EN 858.
- horizontal design made in glass-reinforced plastic (GRP).
- With independent compartments for the separation of sludge and light oils.
- With coalescing filter and automatic closing system with a float set at 0.90 gr / cm³, easily removable.
- With deflector at the inlet and a float on the outlet with internal parts made of HDPE.
- Adjustable upper section available depending on installation depth and load class.
Technical Specifications

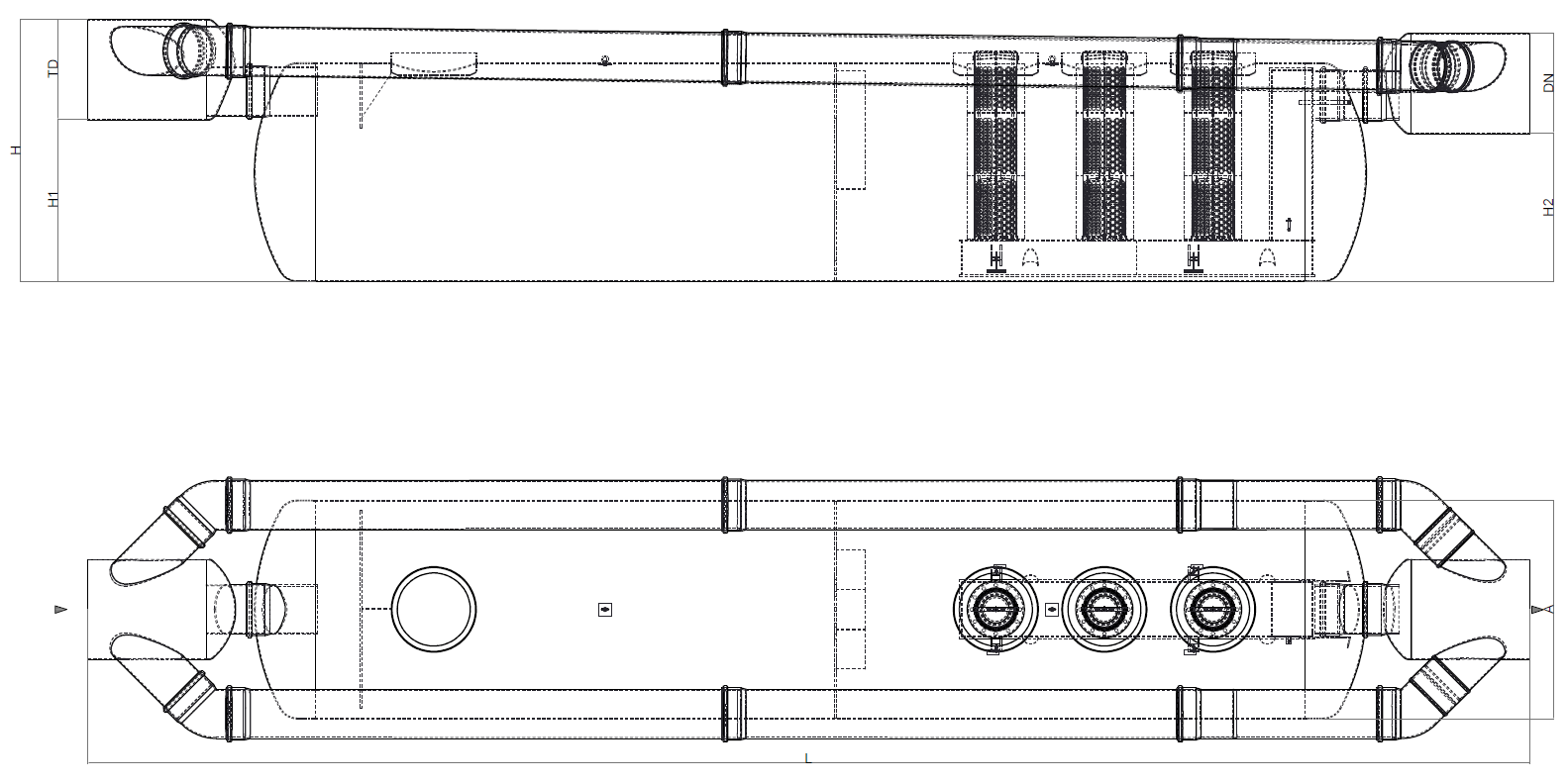

Dimensions
- :
- 1690 (1640*)
- :
- 1650 (1500*)
- :
- 11500 (14612*)
- :
- Ø2200 (2685*)
- :
- 650 (1020*)
- Manhole nº:
- 4xØ600
- Nominal size (l/s):
- 200
- Max. By-pass flow rate (l/s):
- 2000
- Sludge trap capacity (l):
- 20000
- Light oil capacity (l):
- 7230
- Total capacity (l):
- 37800
- Inlet/outlet connections:
- 1000
- Weight (kg):
- 3100
- :
- 2340 (2660*)
