Description

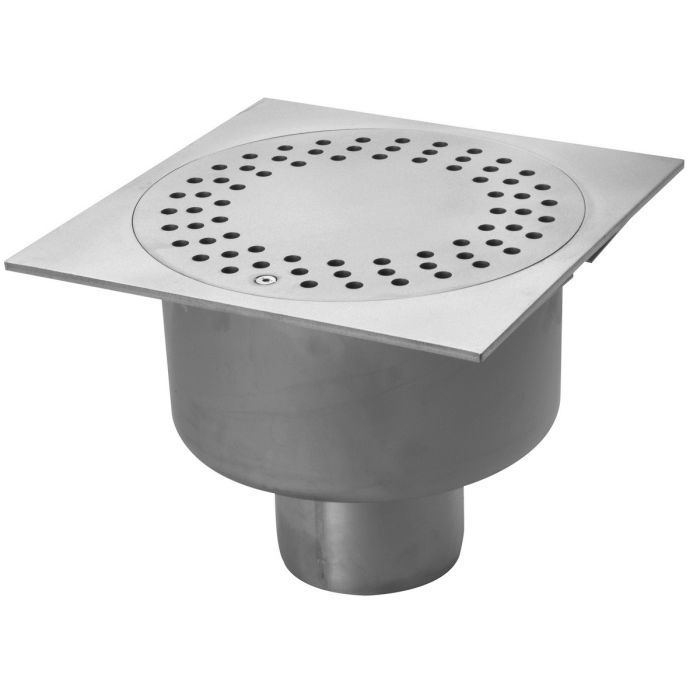

Gullies without FAT made in stainless steel AISI 304 type ACO SELECT, footprint 250x250 mm for caramic or resin floors, with vertical outlet DN110, rounded body to facilitate cleaning and removable siphon with an approximate flow of 2 l/s and a retention of ;60 mm in height of water, all according to EN-1253 and EN-1672 regulations. Includes perforated ciruclar gratng suitable for a 30kN load class, ground connection and leveling feet. pickled and passivated finish. Weight: 4,5 kg.
Article:S0414407
Article:S0414407
Characteristics
- The gully is supplied with a circular grating located at the top.
- The foul air trap is an integral part of the grating and allows access to unblock the drain pipe.
- The outlet is vertical and allows easy connection to standard diameter pipe.
Technical Specifications

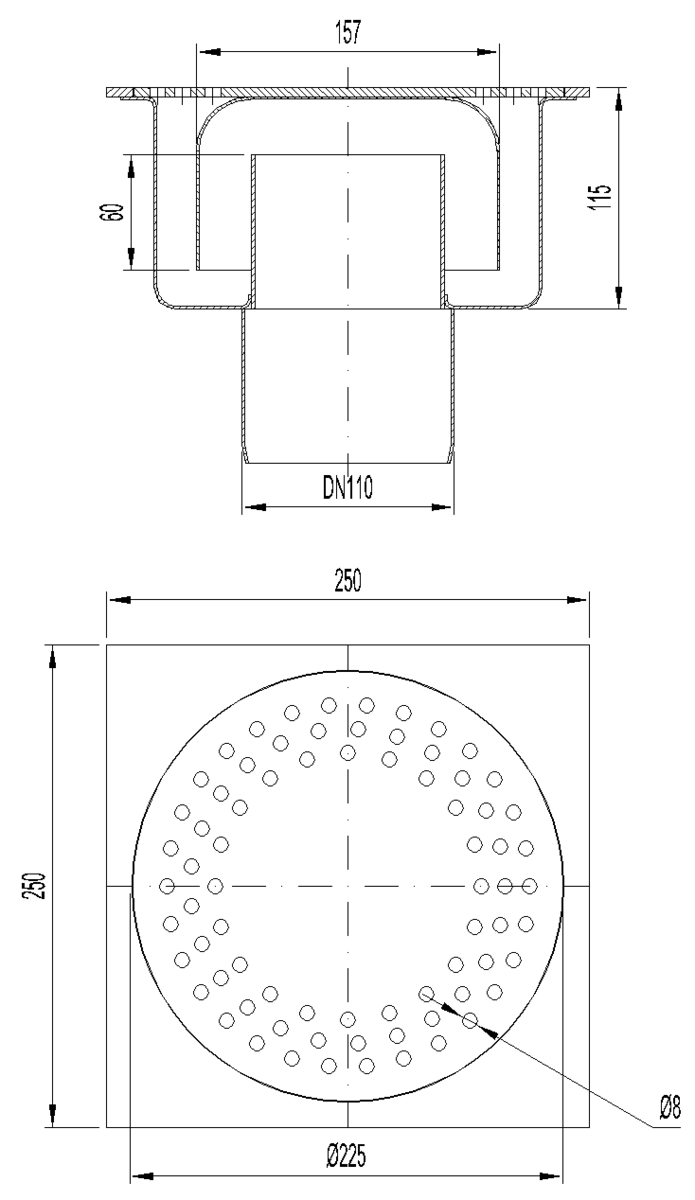

Dimensions
- Material:
- AISI304
- Weight (kg):
- 4,5
- DN (mm):
- 110
- Flow rate EN-1253-1 / Direct (l/s):
- 2
- Water seal (mm):
- 60
- D bottom (mm):
- 201
- H extermal (mm):
- 195
