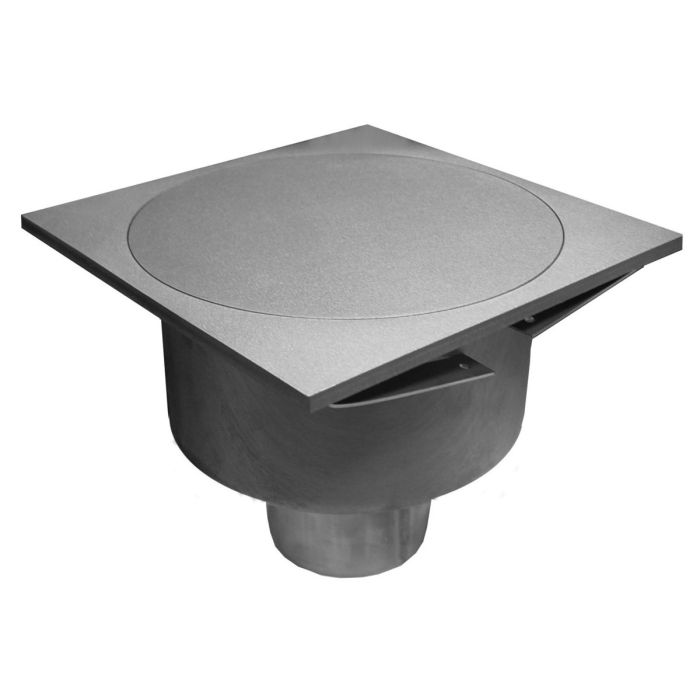

GULLY W/FAT AISI304 SELECT 200X200MM CERAMIC OUT/V DN75 W/GR ESTANCA
S0409895
226,47 €
Description
Gully with foul air trap made in stainless steel AISI 304, type SELECT, with dimensions 200x200 mm for ceramic floors, vertical DN75 outlet, rounded body for easy cleaning, with integrated foul air trap with a flow rate of 0,9 l/s and a water seal of 52 mm, according to normative EN-1253. Include cover estanca in a circular shape suitable for a 30kN load class, grounding and anchoring feet to the concrete. Finished pickled and passivated. Weight: 3,9 kg.
Article: S0409895
Article: S0409895
Characteristics
- The gully is delivered with a circular cover located at the top.
- The foul air trap allows access for the cleaning of the drainage pipe.
- The outlet is vertical and allows an easy connection to the pipes of standard diameters.

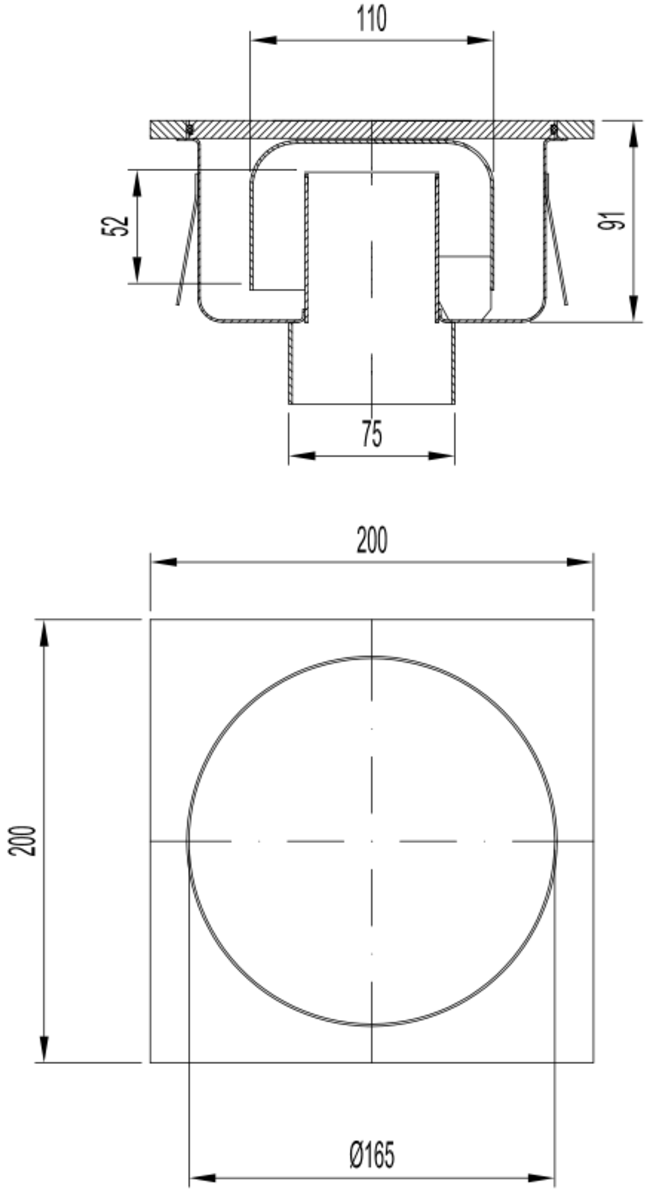

Technical Specifications
Dimensions
- Water seal (mm):
- 52
- D bottom (mm):
- 157
- H extermal (mm):
- 131
- Grating type:
- estanca
- Material:
- AISI304
- Weight (kg):
- 3,9
- DN (mm):
- 75
- Flow rate (l/s):
- 0,9
