Description
Gully with foul air trap made in stainless steel AISI 304, type SELECT, with dimensions 200x200 mm for ceramic floors, vertical DN75 outlet, rounded body for easy cleaning, with integrated foul air trap with a flow rate of 0,9 l/s and a water seal of 50 mm, according to normative EN-1253. Include grating slot in a circular shape suitable for a pedestrian load class, grounding and anchoring feet to the concrete. Finished pickled and passivated. Weight: 2,1 kg.
Article: S0409891
Article: S0409891
Characteristics
- The gully is delivered with a circular grating located at the top.
- The foul air trap is integrated with the grating and allows access for the cleaning of the drainage pipe.
- The outlet is vertical and allows an easy connection to the pipes of standard diameters.

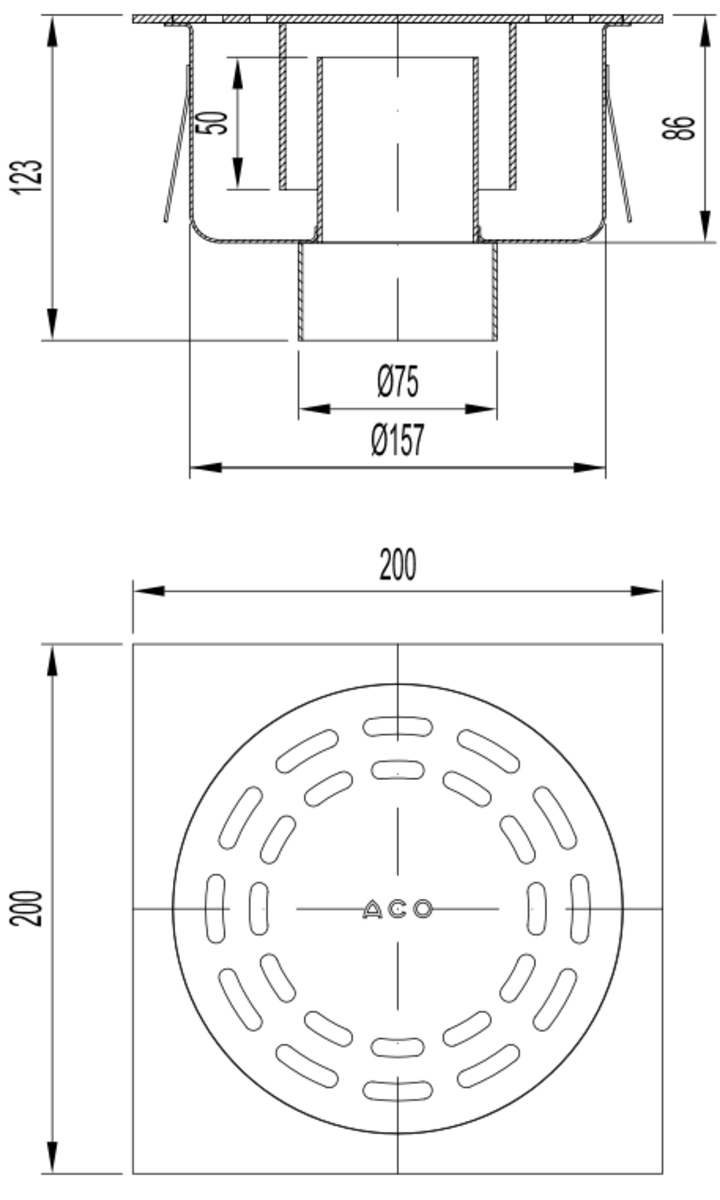

Technical Specifications
Dimensions
- DN (mm):
- 75
- Flow rate (l/s):
- 0,9
- Material:
- AISI304
- Weight (kg):
- 2,1
- Water seal (mm):
- 50
- D bottom (mm):
- 157
- H extermal (mm):
- 123
- Grating type:
- slot
