Description
Gully with foul air trap made in stainless steel AISI 304, type SELECT, with dimensions 150x150 mm for ceramic floors, vertical DN50 outlet, rounded body for easy cleaning, with integrated foul air trap with a flow rate of 0,65 l/s and a water seal of 50 mm, according to normative EN-1253. Include grating slot in a circular shape with fixation suitable for a pedestrian load class, grounding and anchoring feet to the concrete. Finished pickled and passivated. Weight: 1,6 kg.
Article: S0405716
Article: S0405716
Characteristics
- The outlet is vertical and allows an easy connection to the pipes of standard diameters.
- The gully is delivered with a circular grating located at the top.
- The foul air trap is integrated with the grating and allows access for the cleaning of the drainage pipe.
Technical Specifications

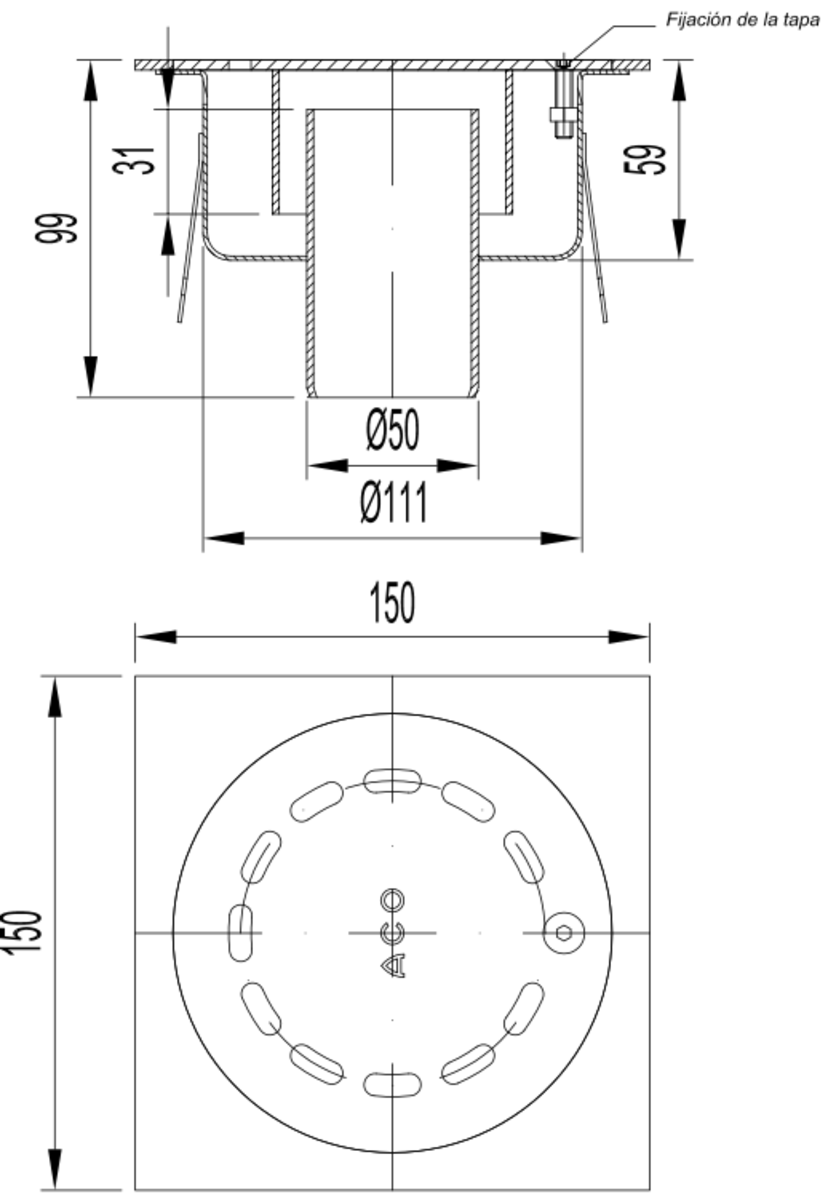

Dimensions
- Material:
- AISI304
- Weight (kg):
- 1,6
- DN (mm):
- 50
- Flow rate (l/s):
- 0,65
- Water seal (mm):
- 50
- D bottom (mm):
- 110,5
- H extermal (mm):
- 98,5
- Grating type:
- slot
