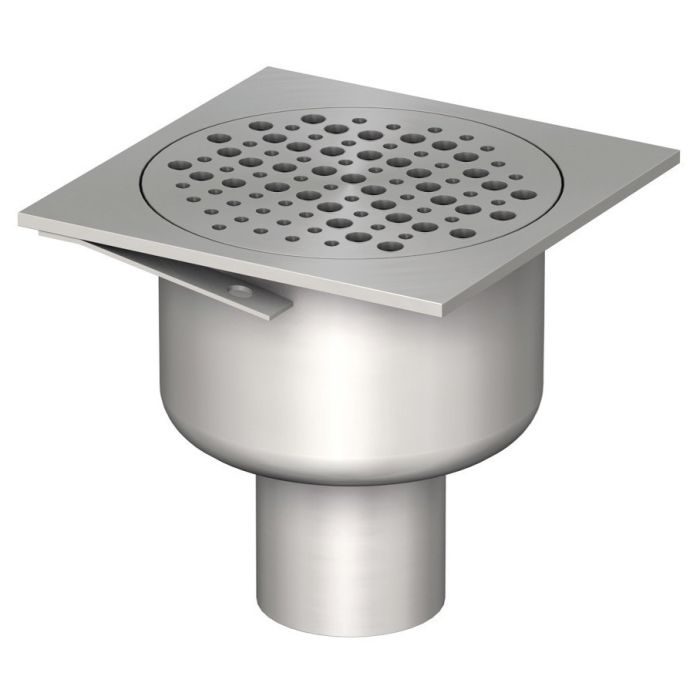

GULLY W/FAT AISI304 SELECT 100X100MM CERAMIC OUT/V DN40 W/GR OCEAN
S0302936
199,81 €
Description
Gully with foul air trap made in stainless steel AISI 304, type SELECT, with dimensions 100x100 mm for ceramic floors, vertical DN40 outlet, rounded body for easy cleaning, with integrated foul air trap with a flow rate of 0,35 l/s and a water seal of 25 mm. Include grating OCEAN in a circular shape with fixation suitable for a pedestrian load class, grounding and anchoring feet to the concrete. Finished pickled and passivated. Weight: 0,7 kg.
Article: S0302936
Article: S0302936
Characteristics
- The gully is delivered with a circular grating located at the top.
- The foul air trap is integrated with the grating and allows access for the cleaning of the drainage pipe.
- The outlet is vertical and allows an easy connection to the pipes of standard diameters.

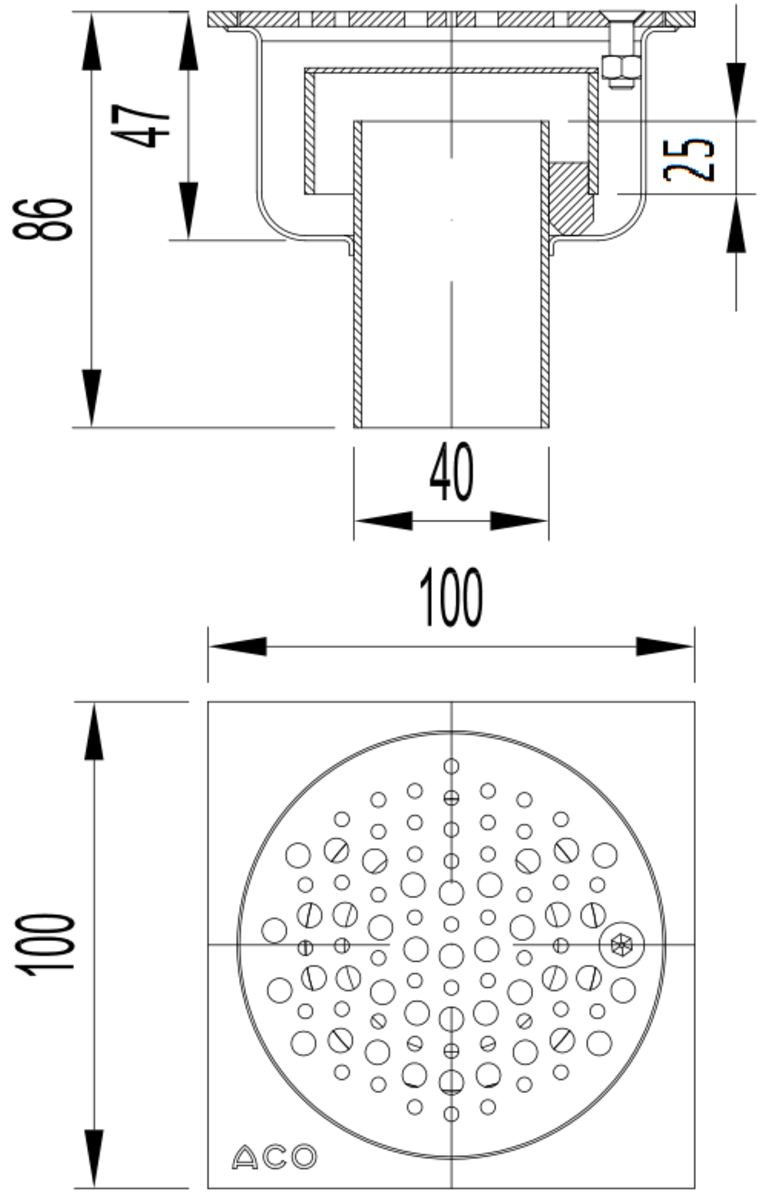

Technical Specifications
Dimensions
- Material:
- AISI304
- Weight (kg):
- 0,7
- DN (mm):
- 40
- Flow rate (l/s):
- 0,35
- Water seal (mm):
- 25
- D bottom (mm):
- 80
- H extermal (mm):
- 86
- Grating type:
- OCEAN
