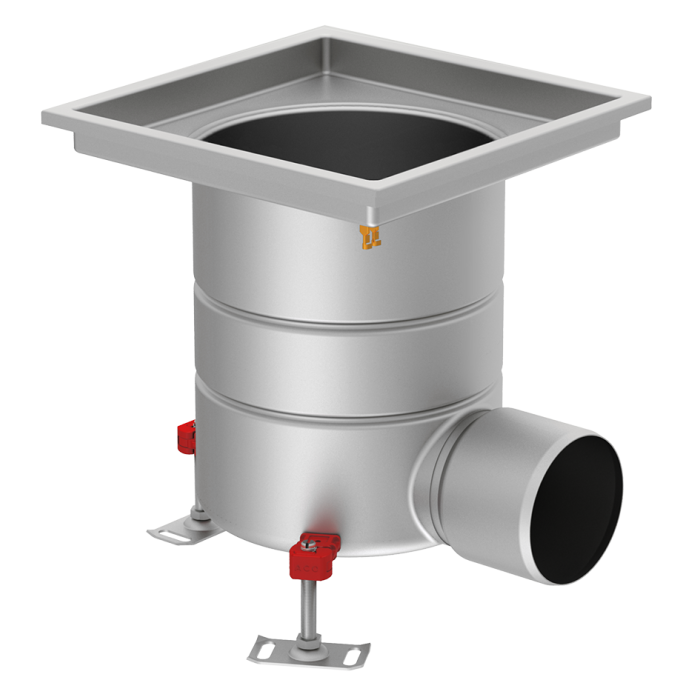

GULLY SIF AISI304 EG FIXED 300X300MM NBR EXTENDIDO S/H DN110 Ø218 W/BASKET

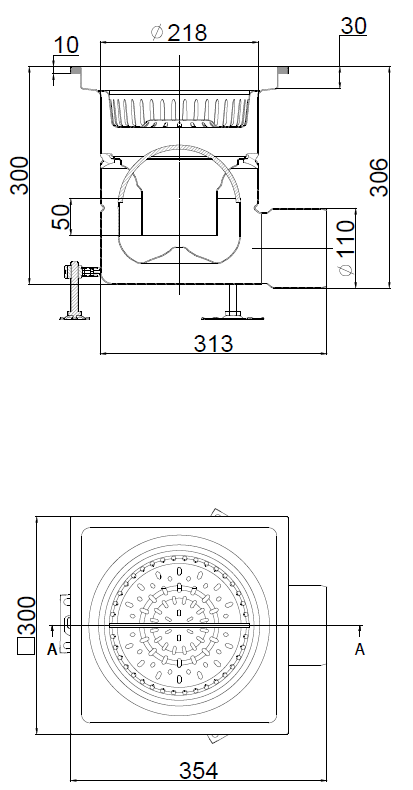

Gullies made in stainless steel AISI 304 type ACO EG without FAT for caramic or resin floors, footprint 300x300 mm, with horizontal outlet DN110, body of Ø218 mm extended total height [**P018**]mm, rounded to facilitate cleaning and avoiding the creation of bacterial biofilm and removable siphon extended of high capacity with an approximate flow of 6,5 l/s and a retention of 50 mm in height of water, all according to EN-1253 and EN-1672 regulations. Maximum flow rate of 8,8 l/s under direct ischarge.d Includes a 1,4 liter solids collection basket. lncludes ground connection, leveling feet and lower perimeter profile sealing with NBR, which give the perimeter a perfect stiffening of the sump, the adaptation of the flange to large loads and a perfect union with the pavement. pickled and passivated finish. Installation height: 300 mm. Weight: 6,42 kg.
Article:EG447663
