GULLY FAT AISI304 EG HC 400X400MM CERAMIC S/V DN160 W/BASKET

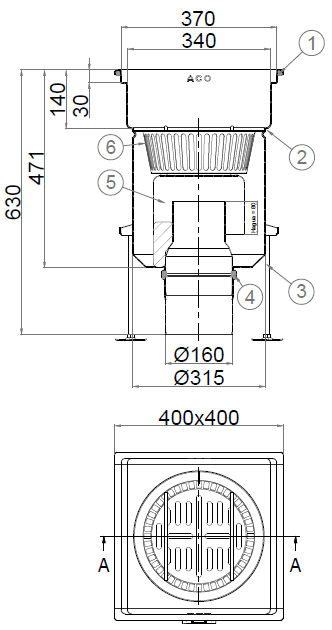

Gully siphonic of stainless steel AISI 304, ACO type EG HC HygieneFirst® industrial for floor ceramic, high capacity, dimensions 400x400 mm, outlet vertical DN160, body without edges or corners to facilitate cleaning and prevent the formation of bacterial biofilm, with removable trap with a maximum drainage flow rate of 20 l/s and a water seal height of 80 mm, according to EN-1253. Does not include grating. Finish pickled and passivated. Hygienic design according to EN-1672, EN ISO 14159 and EHEDG documentation documents 8, 13 and 44. Includes sealing of the lower perimeter profile with NBR gasket, providing the perimeter with perfect channel rigidity, adaptation of the flange to high loads and a perfect bond with the floor. Includes basket in stainless steel AISI 304 with a volume of 4 l. Weight: 16,36 kg.
Item:EG446844
