Description
Gullies made in stainless steel AISI 304 type ACO EG without FAT for caramic or resin floors, footprint 300x300 mm, with vertical outlet DN160, body of Ø218 mm, rounded to facilitate cleaning and avoiding the creation of bacterial biofilm and removable siphon with an approximate flow of 5 l/s and a retention of 53 mm in height of water, all according to EN-1253 and EN-1672 regulations. Maximum flow rate of 5,5 l/s under direct ischarge.d Includes a 1,4 liter solids collection basket. lncludes ground connection, leveling feet and lower perimeter profile sealing with NBR, which give the perimeter a perfect stiffening of the sump, the adaptation of the flange to large loads and a perfect union with the pavement. pickled and passivated finish. Installation height: 200 mm. Weight: 5,12 kg.
Article:EG408007
Article:EG408007
Characteristics
- Designed for kitchen and industrial applications.
- Suitable for ceramic floors
- Available with different hydraulic capacities, grating sizes,, bodies and outlet diameters.
- Made of stainless steel. AISI 304 or 316L
- Pickled and passivated by chemical pickling to ensure the absence of corrosion in weld joints.
- Includes basket for collecting solid particles and removable foul air trap.
Technical Specifications
Dimensions 1
- Material:
- AISI304
- Weight (kg):
- 5,12
- DN (mm):
- 160
- Flow rate (l/s):
- 5
- Water seal (mm):
- 53
- D bottom (mm):
- Ø218
- H extermal (mm):
- 274
- H Grating (mm):
- 30
- Basket volume (l):
- 1,4

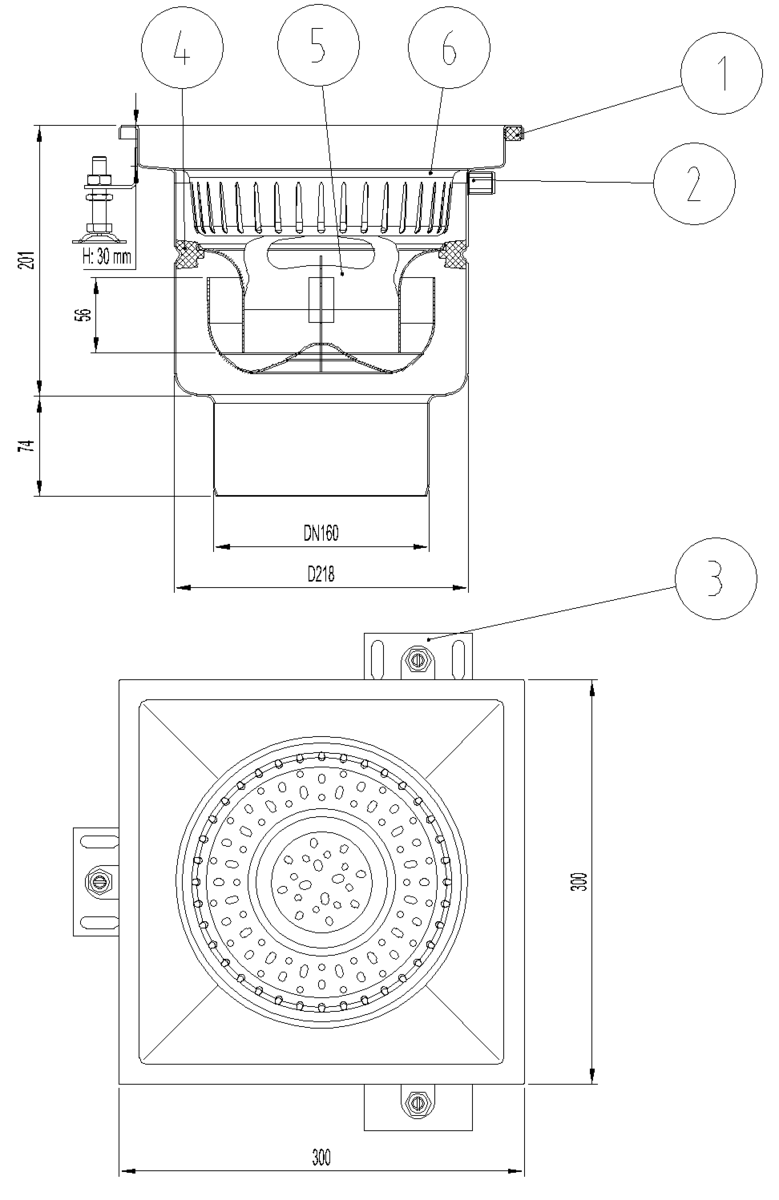

Dimensions 2
- 1- Reinforcement NBR:
- 2- Grounding:
- 3- Leveling feets:
- 4- Foul air trap seal:
- 5- Foul air trap:
- 6- Basket:
