CNL STD 300X330 AISI304 H:50/55 Ø142 V/OUT DN75 TELA GR BAR A/D R50 W/BASKET

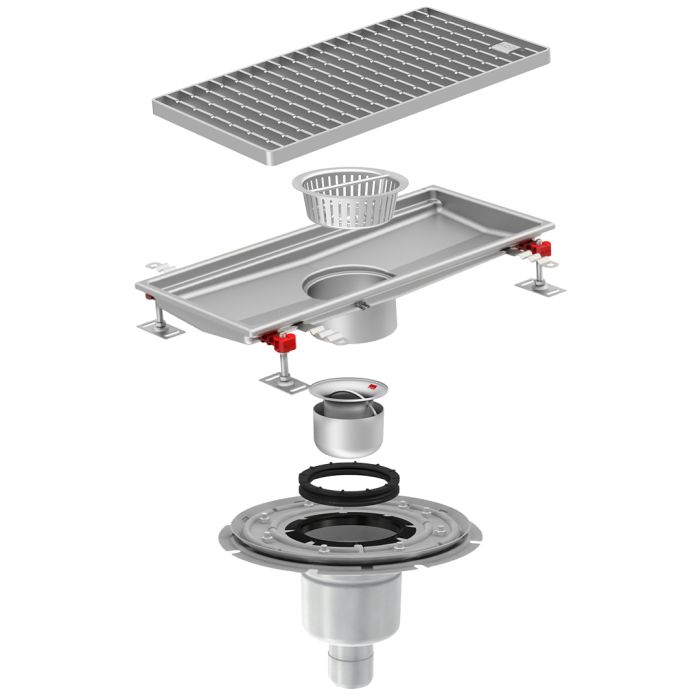

ACO BOX HygieneFirst® channel made entirely of stainless steel AISI 304, 300 mm wide and 330 mm long. Bottom with ''V'' profile to increase the evacuation speed, without edges or corners to facilitate cleaning and avoiding the creation of bacterial biofilm. With a slope of minimum height 50 mm and maximum 55 mm. With vertical outlet DN75 through Ø142 diameter gully with removable siphon. Output flow of 1,4-1,7 l/s. Include a basket with a volume of 0,4 l. Include antislip bars grating suitable for load class R50, with electropolished finish. Leveling screws and anchoring feet to the concrete, according to CTE-HS-5, sealing of the lower perimeter profile with NBR gasket, which give the perimeter a perfect stiffening of the channel, the adaptation of the flange to large loads and a perfect union with the pavement. Weight: 6,9 kg.
