CNL STD 500X1030 AISI304 H:50/65 Ø157 V/OUT DN75 GR BAR A/D R50 W/BASKET

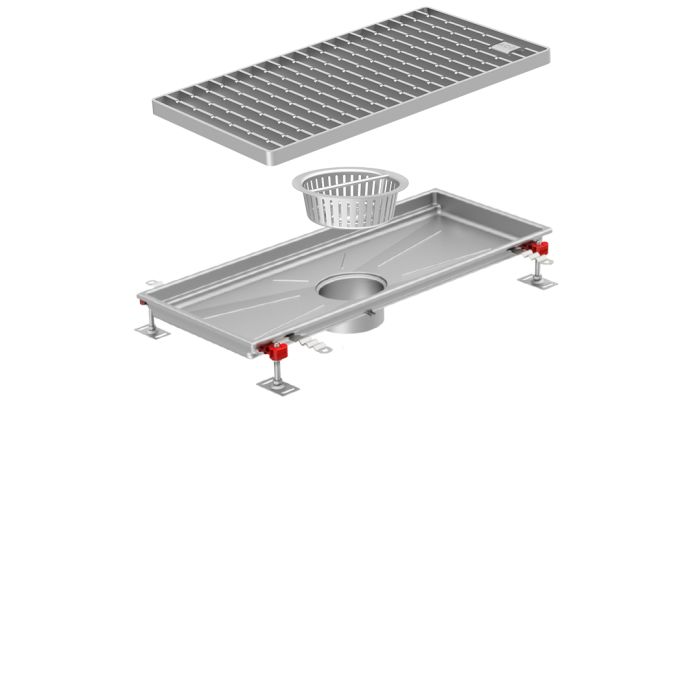

ACO BOX HygieneFirst® channel made entirely of stainless steel AISI 304, 500 mm wide and 1030 mm long. Bottom with 4-way slope to increase the evacuation speed, without edges or corners to facilitate cleaning and avoiding the creation of bacterial biofilm. With a slope of minimum height 50 mm and maximum 65 mm. With vertical outlet DN75 through Ø157 diameter gully with removable siphon. Output flow of 2,7-3,3 l/s. Include a basket with a volume of 0,6 l. Include antislip bars grating suitable for load class R50, with electropolished finish. Leveling screws and anchoring feet to the concrete, according to CTE-HS-5, sealing of the lower perimeter profile with NBR gasket, which give the perimeter a perfect stiffening of the channel, the adaptation of the flange to large loads and a perfect union with the pavement. Weight: 37,7 kg.
