CNL STD 400X830 AISI304 H:50/60 Ø157 H/OUT DN110 GR BAR A/D R50 W/BASKET

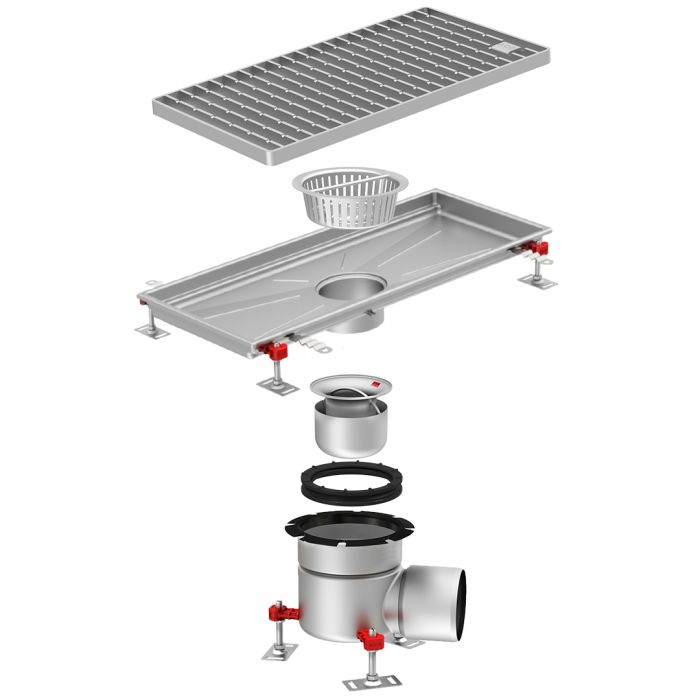

ACO BOX HygieneFirst® channel made entirely of stainless steel AISI 304, 400 mm wide and 830 mm long. Bottom with 4-way slope to increase the evacuation speed, without edges or corners to facilitate cleaning and avoiding the creation of bacterial biofilm. With a slope of minimum height 50 mm and maximum 60 mm. With horizontal outlet DN110 through Ø157 diameter gully with removable siphon. Output flow of 2,8-4,4 l/s. Include a basket with a volume of 0,6 l. Include antislip bars grating suitable for load class R50, with electropolished finish. Leveling screws and anchoring feet to the concrete, according to CTE-HS-5, sealing of the lower perimeter profile with NBR gasket, which give the perimeter a perfect stiffening of the channel, the adaptation of the flange to large loads and a perfect union with the pavement. Weight: 22,61 kg.
