CNL STD 300X1530 AISI304 H:50/60 Ø157 H/OUT DN75 GR ENT A/D L15 W/BASKET

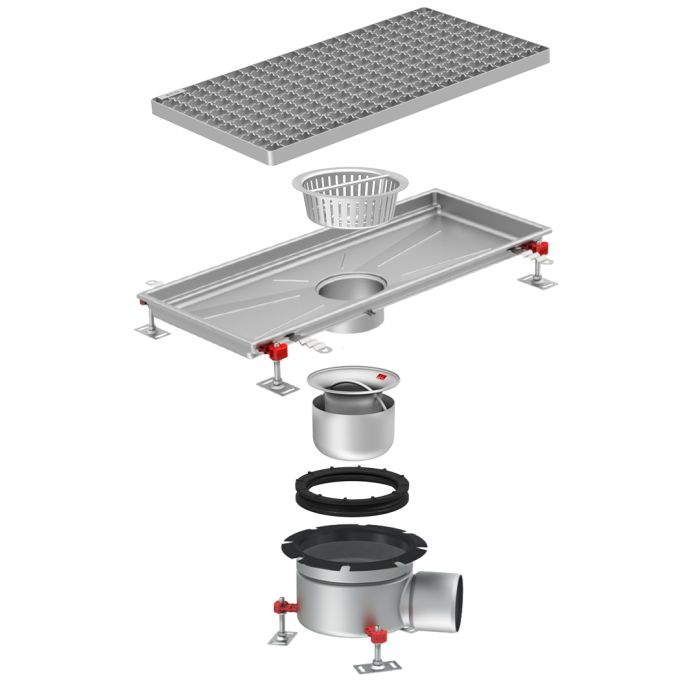

ACO BOX HygieneFirst® channel made entirely of stainless steel AISI 304, 300 mm wide and 1530 mm long. Bottom with ''V'' profile to increase the evacuation speed, without edges or corners to facilitate cleaning and avoiding the creation of bacterial biofilm. With a slope of minimum height 50 mm and maximum 60 mm. With horizontal outlet DN75 through Ø157 diameter gully with removable siphon. Output flow of 2,6-3,3 l/s. Include a basket with a volume of 0,6 l. Include mesh antislip grating suitable for load class L15, with electropolished finish. Leveling screws and anchoring feet to the concrete, according to CTE-HS-5, sealing of the lower perimeter profile with NBR gasket, which give the perimeter a perfect stiffening of the channel, the adaptation of the flange to large loads and a perfect union with the pavement. Weight: 20,81 kg.
