GULLY SIF EASYFLOW V/OUT DN70 W/GR RAN 150X150 W/FLANGE AISI304 W/FIX
CG000002
181,82 €
Description

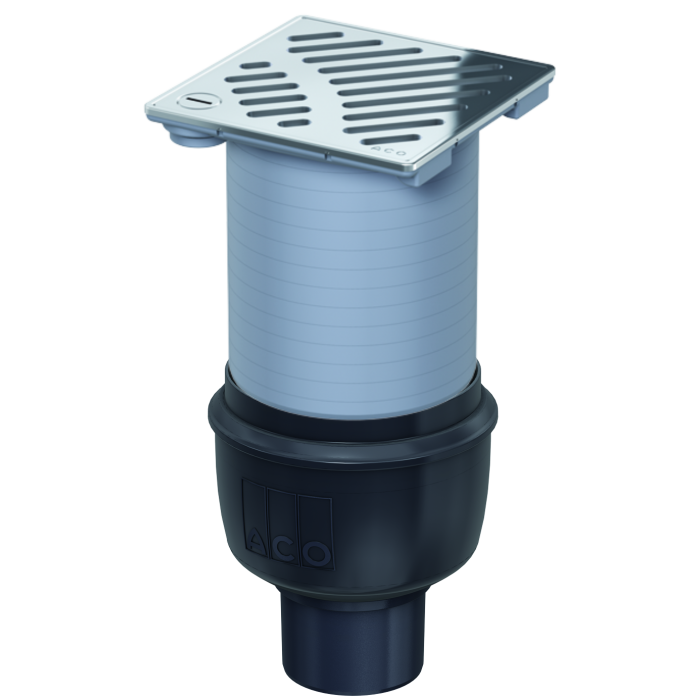

ACO gully set EASYFLOW , composed of a base in polypropylene with outlet vertical DN70 , body round to facilitate cleaning and with removable trap with 50 mm water seal height incorporated. Drainage flow rate of 2 l/s , according to EN‑1253. Includes gully body in Plastic ABS, type ACO EASYFLOW. With grating manufactured in stainless steel AISI 304 and frame in stainless steel AISI 304, with dimensions 150 x150 mm for ceramic floor , grating type slot with fastening , suitable for load class K3. Height: 255 mm , adjustable between 142 – 255 mm. Weight: 0,98 kg.
Characteristics
Technical Specifications

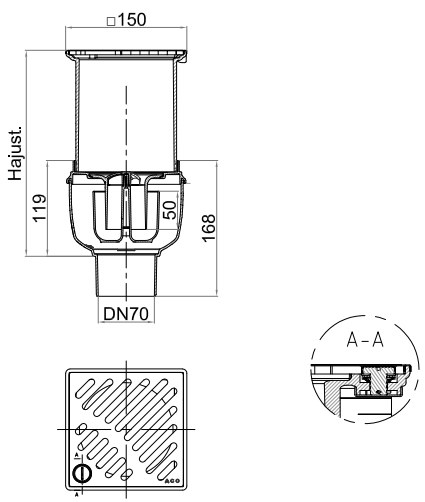

Dimensions
- :
- :
- :
- :
- :
- :
- :
- :
- :
Manuals and installation sections
