LIGHT OIL SEP UNDERG. OLEOPASS C NS15/150-ST1500 DN400 W/COVER A2 T1495

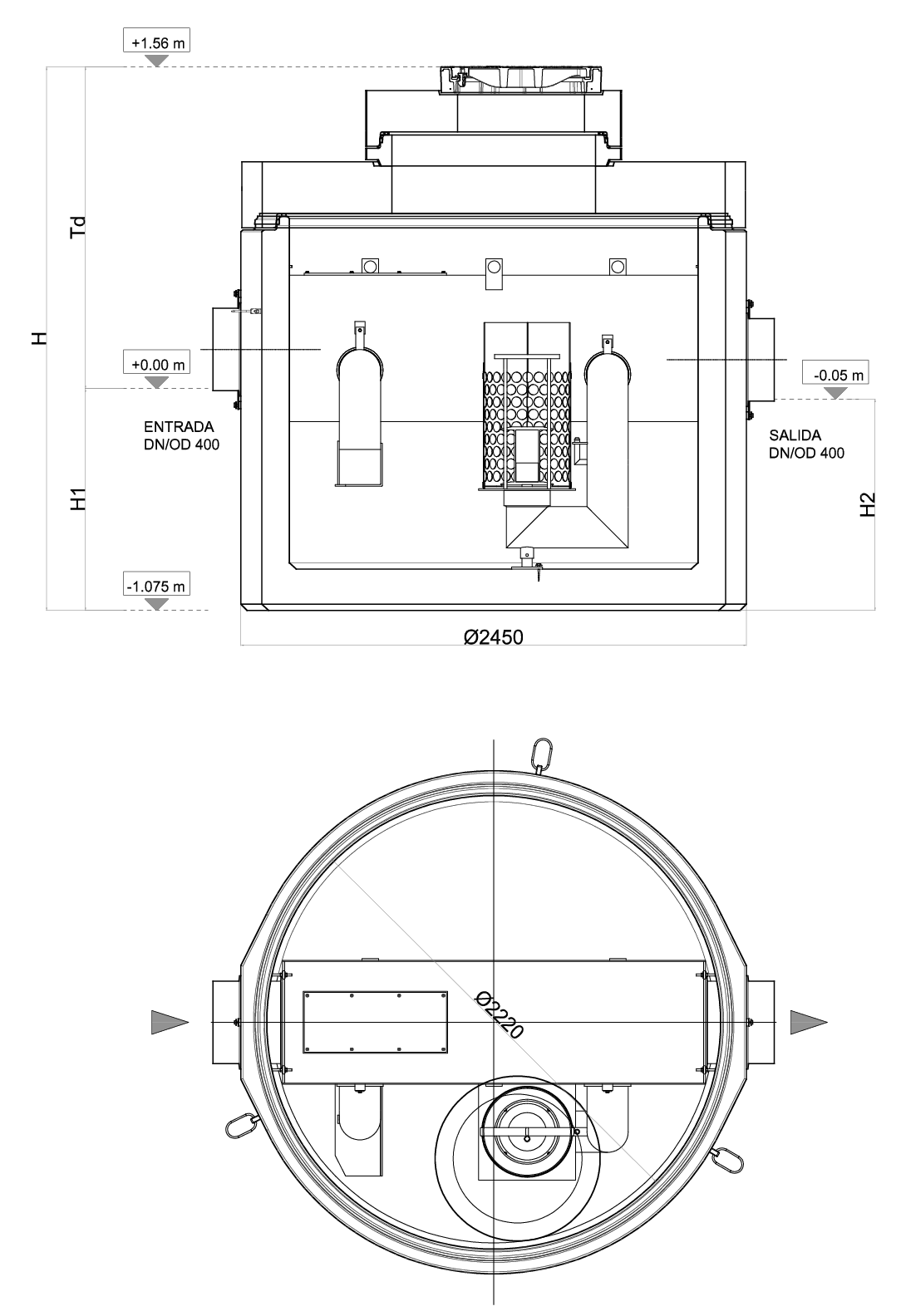

Light oil separator assembly ACO model OLEOPASS-C NS15/150 ST1500, for underground installation, with vertical design made in reinforced concrete monolithic, antifloatability with inner coating. Separator Class I (5 ppm) according to UNE EN 858, nominal size 15 l/s and with By-pass sistem interno for a maximun flow rate of 150 l/s, with integrated sludge trap of 1500 l, total capacity of light oils retention of 805 l and a total volume of 3136 l. The separator is formed by Inlet and outlet connections DN400 in high density polyethylene (HDPE). Include inlet deflector, removable coalescent filter and outlet with calibrated floater to 0,90gr/cm³ for automatic closing in case of light oil excess. With 2570 mm height and Ø2440 mm diameter, dispose of 1 access opening with diameter (1xØ600). Include top section made in reinforced concrete with D400 cover type A2 in cast iron. Possibility of height adjustment with concrete projections. Total weight:8989 kg.
