LIGHT OIL SEP UNDERG. OLEOPASS C NS8/80-ST1200 DN315/300 W/COVER A2 T1305

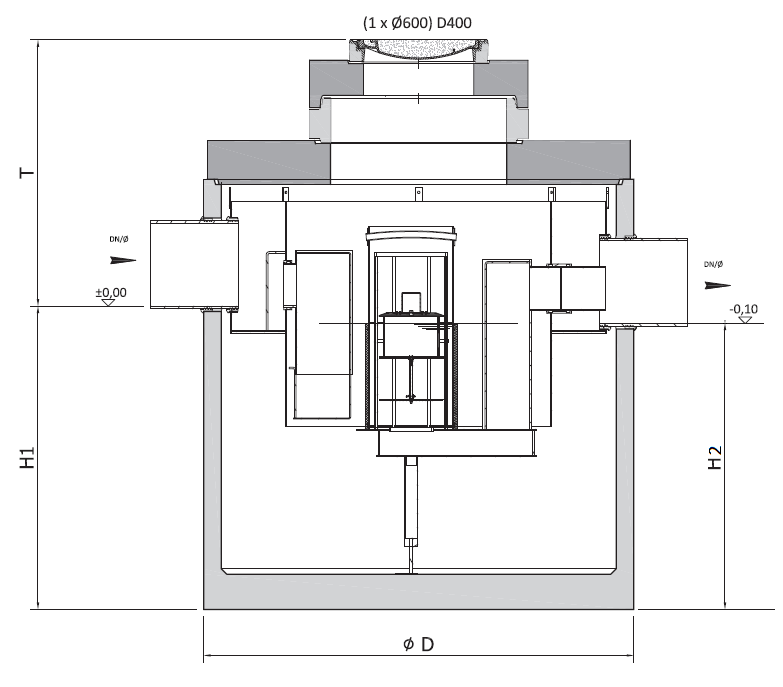

Light oil separator assembly ACO model OLEOPASS-C NS8/80 ST1200, for underground installation, with vertical design made in reinforced concrete monolithic, antifloatability with inner coating. Separator Class I (5 ppm) according to UNE EN 858, nominal size 8 l/s and with By-pass sistem interno for a maximun flow rate of 80 l/s, with integrated sludge trap of 1200 l, total capacity of light oils retention of 447 l and a total volume of 1988 l. The separator is formed by Inlet and outlet connections DN315/300 in high density polyethylene (HDPE). Include inlet deflector, removable coalescent filter and outlet with calibrated floater to 0,90gr/cm³ for automatic closing in case of light oil excess. With 2605 mm height and Ø1820 mm diameter, dispose of 1 access opening with diameter (1xØ600). Include top section made in reinforced concrete with D400 cover type A2 in cast iron. Possibility of height adjustment with concrete projections. Total weight:5808 kg.
