CHANNEL SELF 200 H80 WITH ANTIT SLOTTED GRATING A15 GALVANISED W/LOCK SPRINGLOCK®
C0150020
104,38 €
Description

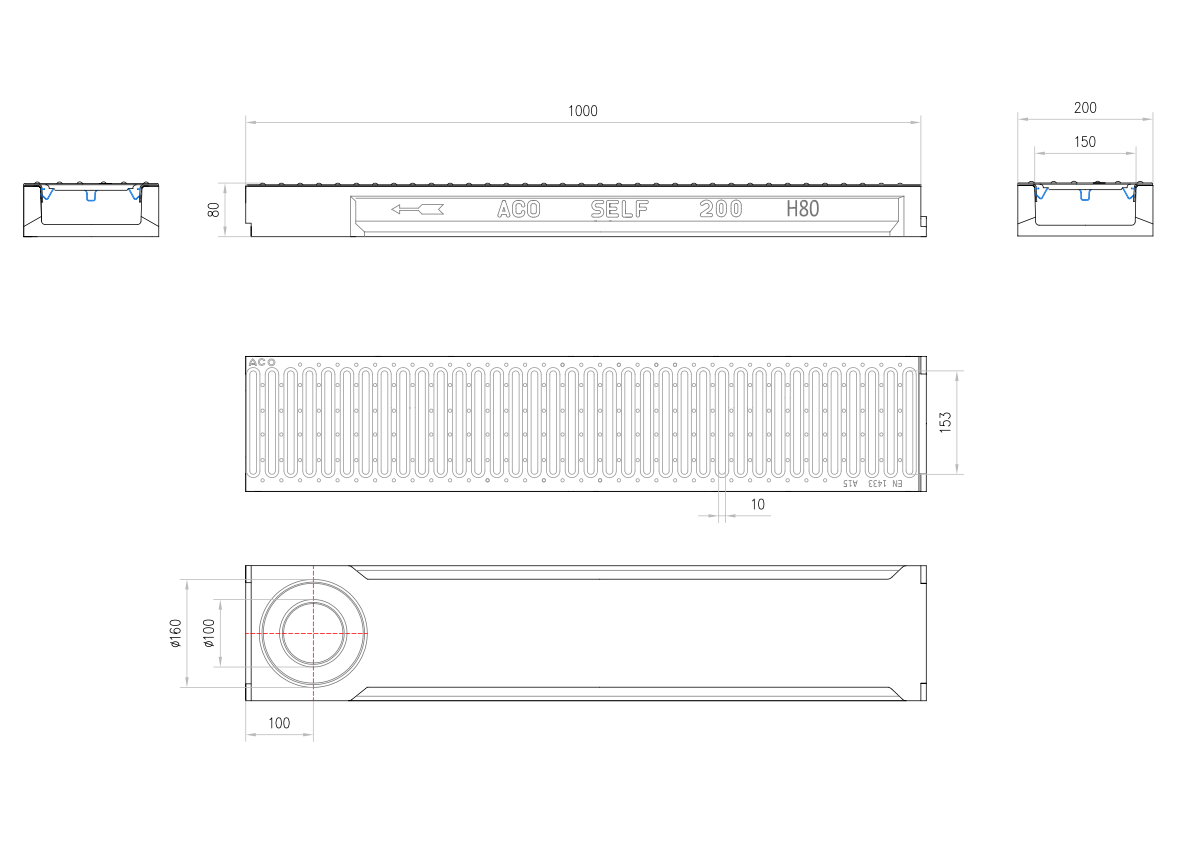

Set of drainage channel type ACO SELF 200 H80 in polymer concrete with grating type heelsafe slotted in galvanised with load class A15 according to EN1433. With locking system by Springlock®. Internal section 88 cm². With vertical preformed DN/OD 110/160. Total lenght 1000, overall heigth 80 mm and overall width 200 mm. Nominal width 150 mm. Weight: 16,34 kg.
Technical Specifications
Dimensions
- Flow rate (l/s):
- 2,3
- Internal section (cm²):
- 88
- Preformed:
- DN/OD 110/160
- Locking system:
- Springlock®
- Channel material:
- polymer concrete
- Model:
- SELF 200
- Length (mm):
- 1000
- Width (mm):
- 200
- Height (mm):
- 80
- Weight (kg):
- 16,34
- Intake area (cm2/m):
- 544,3
- Load class:
- A15
- Grating material:
- galvanised
- :
