CHANNEL SELF 200 H145 WITH ANTIT SLOTTED GRATING A15 GALVANISED W/LOCK BOLT AND BAR
C0150008
104,58 €
Description

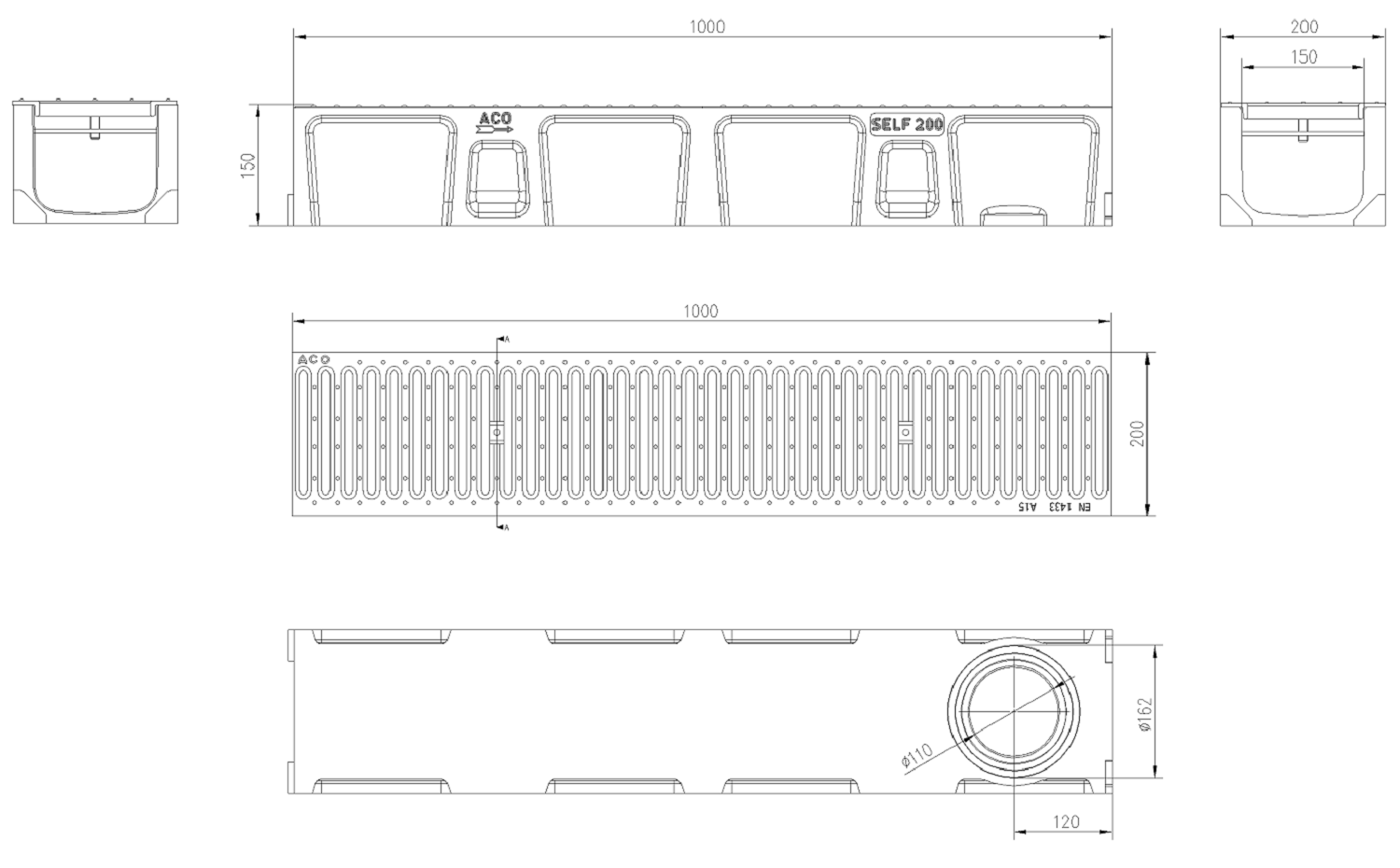

Set of drainage channel type ACO SELF 200 H145 in polymer concrete with grating type heelsafe slotted in galvanised with load class A15 according to EN1433. With locking system by bolt and bar. Internal section 188 cm². With vertical preformed DN/OD 160. Total lenght 1000, overall heigth 145 mm and overall width 200 mm. Nominal width 150 mm. Weight: 18,1 kg.
Technical Specifications
Dimensions
- Preformed:
- DN/OD 160
- Locking system:
- bolt and bar
- Channel material:
- polymer concrete
- Grating material:
- galvanised
- Model:
- SELF 200
- Length (mm):
- 1000
- Width (mm):
- 200
- Height (mm):
- 145
- Weight (kg):
- 18,1
- Intake area (cm2/m):
- 536
- Load class:
- A15
- Flow rate (l/s):
- 10,4
- Internal section (cm²):
- 188
- :
