LIGHT OIL SEP UNDERG. OLEOPASS P NS10/50-ST1080 GRAY DN250

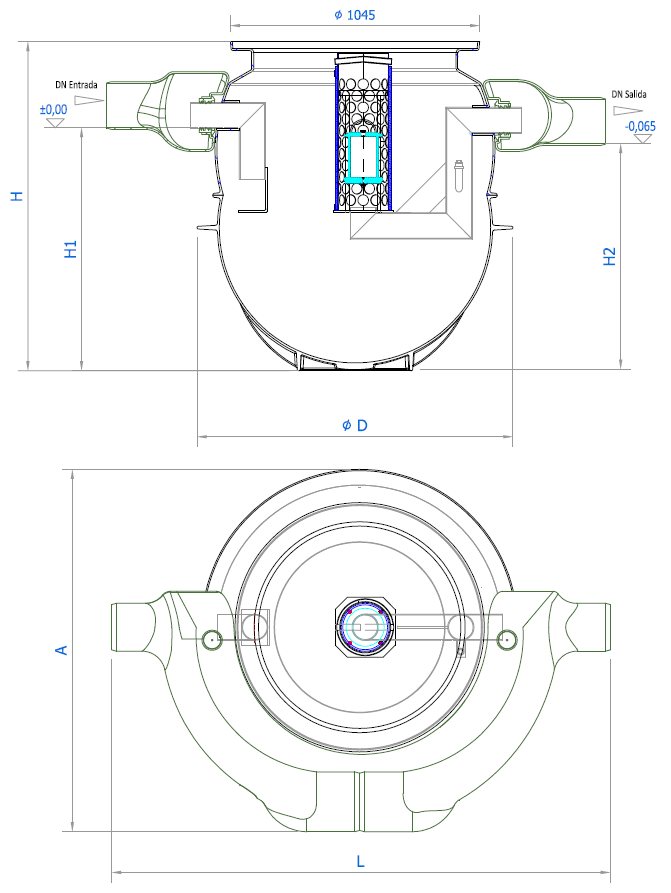

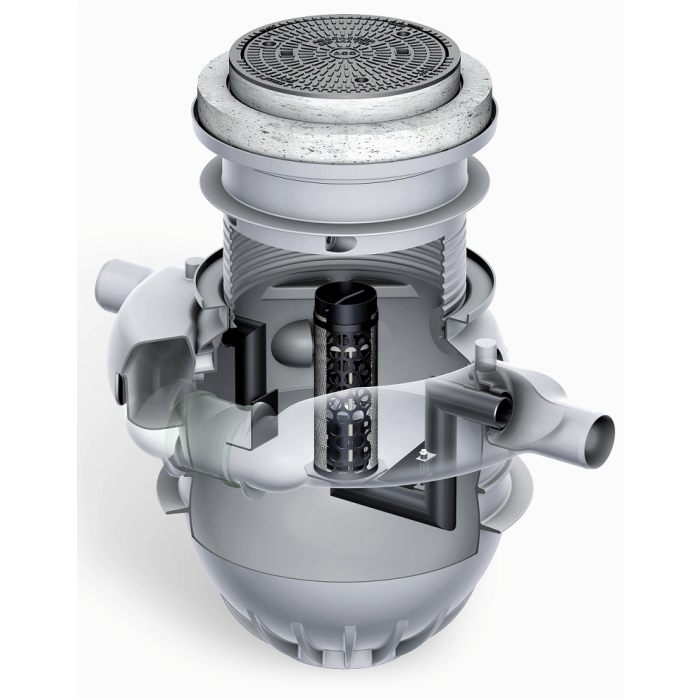

ACO light oil separator model OLEOPASS P NS10/50 ST1080, for underground installation, with vertical design made in high-density polyethylene in gray color. Separator Class I (5 ppm) according to UNE EN 858, nominal size 10 l/s and with By-pass sistem externo for a maximun flow rate of 50 l/s, with integrated sludge trap of 1080 l, total capacity of light oils retention of 260 l and a total volume of 1615 l. The separator is formed by Inlet and outlet connections DN250 in high density polyethylene (HDPE). Include inlet deflector and outlet with calibrated floater to 0,90gr/cm³ for automatic closing in case of light oil excess. With 2129 mm height and Ø1320 mm diameter, dispose of 1 access opening with (1xØ600).. Homologation certificate 7310434-03. Total weight:130 kg.
